A business park in Colombia needed additional reception space to create a modern business reception area. Therefore, they procured a batch of prefabricated reception rooms. Wanzhi Steel completed the entire process from order confirmation to ocean delivery in just 38 days. The project perfectly met the pre-opening reception needs. This collaboration was very smooth and successful; details are as follows.
Client Background
The client is a business park operator in Bogotá, Colombia. Their new project required several sets of quickly assembled business meeting spaces. They contacted us after searching “20-foot mobile prefabricated house” and “quick-assemble prefab house” on Google and reviewing our South American collaborative projects. Initially, they were concerned about the challenges posed by temperature fluctuations and strong winds, so we immediately sent them test reports and provided a customized interior design. After two rounds of optimization, the client finally confirmed the order.
Order Details
| Product Information | Specific configuration |
| Product | Prefabricated reception room |
| Order Quantity | 5 sets |
| Structure | Hot-dip galvanized steel frame (zinc coating ≥120g/㎡) |
| Enclosure System | 100mm thick PU sandwich panels, PVDF coating |
| Color | RAL 9006, RAL 9003, RAL 9001 |
| Dimensions | 40ft×8ft×8.5ft, 20ft×8ft×8.5ft |

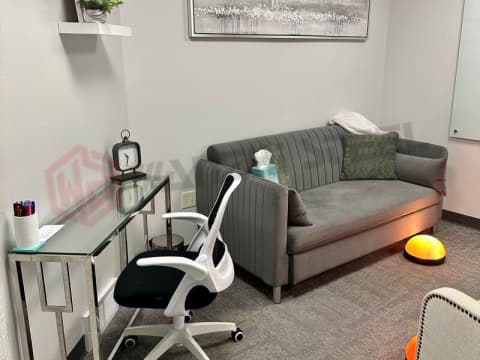

| Interior upgrades | 5mm sound insulation cotton added to walls, recessed LED lights in the ceiling, PVC commercial flooring |
| Customization requirements | 1.2m x 1.5m aluminum alloy sliding windows, security door |
| Transaction methods | CIF Port of Buenaventura |
| Delivery cycle | 38 days |
| Payment methods | 50% prepayment, 50% balance due before shipment. |

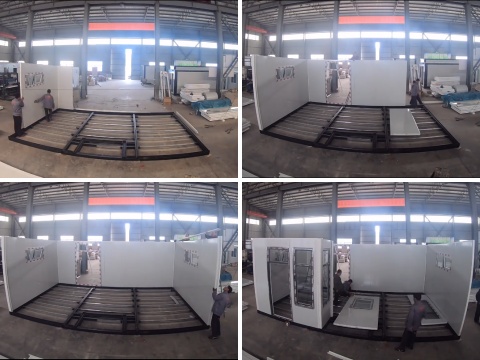

Project Production Process
1. Frame fabrication: Cut and weld hot-dip galvanized C-shaped purlins into a 20-foot and 40ft standard container base;
2. Enclosure Installation: 100mm thick PU sandwich panels are pre-installed on the frame, with sound insulation cotton and doors/windows embedded simultaneously;
3. Interior Configuration: LED ceiling lights are installed, and PVC flooring is laid, completing the integrated assembly of a single unit.
4. Pre-testing: Each unit undergoes shrink-expansion testing to ensure smooth wing deployment and structural stability.

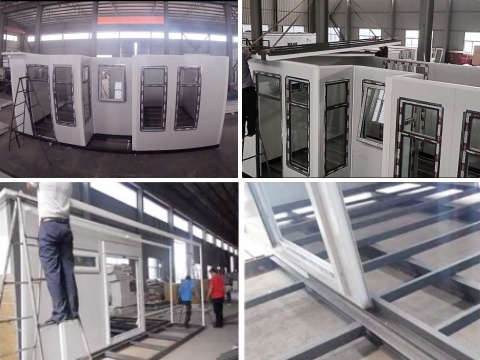

Quality Inspection
Adhering to the ISO 9001 system, all key processes are fully inspected:
1. Structural Inspection: Frame wind resistance rating ≥12, extension locking structure load-bearing capacity ≥500kg.
2. Weathering Inspection: Sandwich panels show no rust after 48 hours of salt spray testing, PVDF coating shows UV aging resistance rating of 4.
3. Functional Inspection: Sliding windows open and close smoothly, sound insulation cotton shows a measured sound insulation level ≥40dB.
4. Visual Inspection: Sandwich panel surface is free of scratches, interior trim has no installation defects.

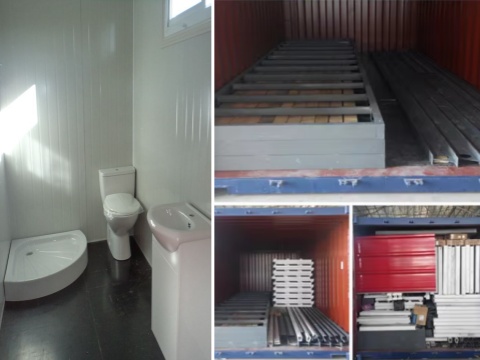

Packaging and Shipping
1. Packaging
Each house is shrunk to the size of a standard shipping container, with a protective film covering the surface and foam padding for critical parts of the frame.
2. Transportation
Three houses are packed into one 40-foot high cube container and shipped by sea to the port of Buenaventura; customs clearance documents are provided in advance, and logistics are tracked throughout the process. Upon arrival at the port, assistance is provided to the client in connecting with the local installation team, and an extended installation operation manual is provided.
Why Choose The Prefabricated Reception Room?
Firstly, it is customizable, greatly satisfying the diverse requirements of different projects. Secondly, it is quick to install and can be disassembled and relocated. Additionally, it is suitable for various climates, corrosion-resistant, rainproof, and has a long lifespan. Furthermore, it is convenient to transport and has low costs. Overall, it offers excellent value for money.
If you are also interested in container houses, please feel free to contact us.
