Introduction

The 30-foot double-wing expandable container house achieves efficient use of space and flexible configuration of functions through modular design and expandable structure. It has the characteristics of low cost, strong mobility, and fast deployment. It is widely used in various scenarios such as residence, construction site office, and business.

Wanzhi Steel 30-foot double-wing expandable container house has a living area of 56㎡ and 58㎡ respectively, which can accommodate 3-6 people, is fully equipped, and supports customization. If you are interested, please contact us.

Send Us Email

Leave a Message

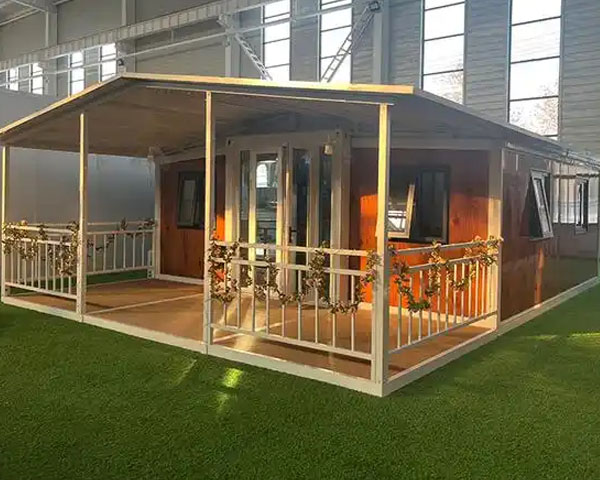

Flat roof double wing expandable container house

Product Size

Type	Folded size (mm)	Unfolded size (mm)	Footprint	Transportation	Number of rooms
Conventional double wing	LWH 900022002480	LWH 900062202480	56m²	1 sets per 40HC container	4
Flat top double wing	LWH 900022502450	LWH 900064202450	58m²	1 sets per 30HC container	4

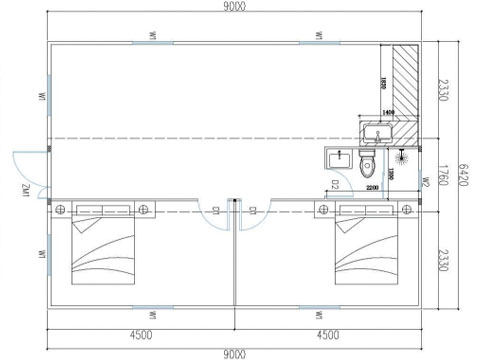

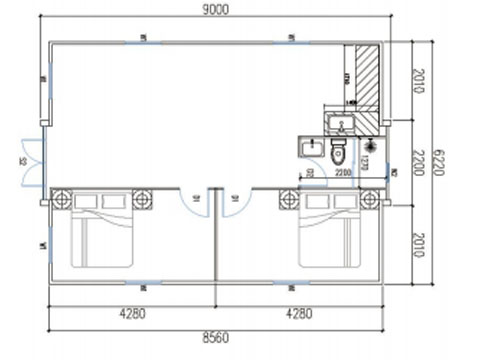

30ft conventional double-wing floor plan

Other Configuration

Main frame (full galvanized)	Top side beam	801403.75mm galvanized square tube
	Top end beam	Galvanized bending parts 3.0mm
	Top horizontal secondary beam	30501.8mm galvanized square tube
	Bottom side beam	801403.0mm galvanized square tube
	Bottom end beam	Galvanized bending parts 3.0mm
	Bottom longitudinal secondary beam	80802.0mm galvanized square tube
	Bottom horizontal secondary beam	40802.0mm galvanized square tube
	6mm galvanized hanging head	Galvanized hanging head L210W150H160mm
	Steel column	Galvanized bending parts 3.0mm
Side frame (full galvanized)	Top frame	P40801.8mm galvanized P-shaped tube
	Top frame	40801.8mm Galvanized square tube
	Bottom frame	60802.5mm galvanized square tube
	Folding hinges	130mm galvanized hinge
Top	External top plate of the main body	75mm EPS color steel composite board + 0.45mm corrugated veneer
	Internal ceiling plate of the main body	75mm EPS color steel composite board + 0.45mm corrugated veneer
	External top plates of the two wings	65mm EPS color steel composite board + 0.45mm corrugated veneer
Walls	Side walls, front and back walls	65mm EPS color steel composite board
Walls	Indoor partition wall panels	50mm EPS color steel composite board
Doors and Windows	Plastic steel double-glazed sliding windows	930930mm6 fans
Doors and Windows	High-quality steel fireproof doors	8402035mm1
Electrical System	Circuit system	Voltage 220V, 50HZ
	Lighting	All with embedded square lights/round lights
	Sockets	Number of ordinary sockets (socket standards can be configured according to customer requirements)
	Light switches	Double-open, single-button switch (switch standards can be configured according to customer requirements)
	Wiring	Circuits that meet certification requirements can be customized according to country.
Accessories	Corner lines, baseboards and corner wraps, floor strips, top gussets, and bathroom corner sidings are provided free of charge. Baiyun structural adhesive, nail-free adhesive, waterproof tape, and glue gun are provided free of charge.

Product Advantages

Flexible space expansion: It is easy to transport after folding, and the area is increased after unfolding to meet the needs of different numbers of people or functions.
Quick deployment: With prefabricated components and modular design, it only takes 1-2 hours to unfold on site.
Strong and durable: It uses a high-strength galvanized frame as the supporting structure, and the exterior is covered with environmentally friendly metal sandwich panel, which has a stable structure.
Strong customization: The internal space can be flexibly divided and can be customized according to user needs.
Low cost: Short construction period, low cost, reusable, and can be transformed later.

Gallery

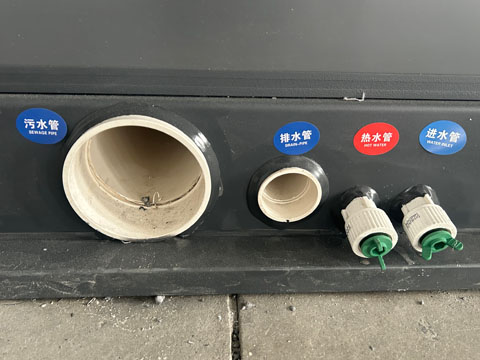

Customized water pipes for different countries — Customized water pipes

We rely on our own production line to strictly control the quality of raw materials. Our products can withstand 8-magnitude earthquakes and 10-magnitude typhoons, and have excellent waterproof performance.
Support full-dimensional customization of appearance, interior, and configuration to meet your personalized needs.
With multiple production lines and a complete supply chain, it is easy to undertake large orders and achieve fast delivery.
7×24-hour customer service follows up throughout the process, from pre-sales consultation to after-sales guarantee, so you don’t have to worry.
With 14+ years of export experience, we have successfully exported to more than 120+ countries.

Wanzhi Steel is China’s leading supplier of double-wing expandable container houses. The company has passed multiple certifications such as ISO 9001 and ISO14001. Double-wing expandable container houses include 10ft, 20ft, 30ft, and 40ft. If you are interested in container house products, please contact us.
