Introduction

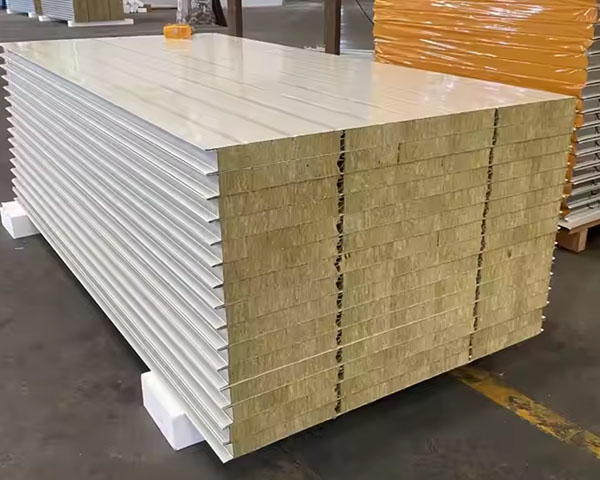

Clean room panels, also known as purification panels, are a type of metal composite panels. Through special treatment of metal panels and combining them with core materials, metal panels with antibacterial, dustproof, fireproof and other functions are produced.

We have a variety of types and specifications of clean room panels with stable performance and long service life. Years of industry experience can provide you with the best clean room solutions.

Send Us Email

Leave a Message

Clean Room Panel Specifications

Product Name	Clean room panels
Metal sheet thickness	Stainless steel: 0.4-1.2mm; galvanized steel: 0.4-0.8mm; aluminum: 0.3-0.8mm
Overall thickness	50mm,75mm,100mm,150mm
Width	900 – 1200mm
Length	≤6000mm
Core material	PU, rock wool, aluminum honeycomb, glass magnesium board, etc.
Fire rating	Grade A, B1
Air tightness	≤1.5×10⁻³ m³/(h·m²) @50Pa
Antibacterial properties	≤1.5×10⁻³ m³/(h·m²) @50Pa
Colors	Multiple colors and patterns
MOQ	5 tons
Packaging	Seaworthy packaging or as per customer requirements

Clean Room Panel Core Material Information

Core material type	Density	Thermal conductivity	Fire protection level	Compressive strength
Polyurethane (PU)	40 – 50kg/m³	≤0.022W/(m·K)	B1	≥150kPa
Rock wool	120 – 150kg/m³	0.036 – 0.042W/(m·K)	A1/A2	≥40kPa
Glass magnesium board	1800 – 2100kg/m³	0.15W/(m·K)	A1	≥25MPa
Aluminum honeycomb	30 – 50kg/m³	0.05~0.1W/(m·K)	B1	≥300kPa

Fire protection level: A1 (non-combustible) > A2 (non-combustible) > B1 (difficult to burn) > B2 (combustible)

Clean Room Panel Advantages

Excellent fireproof performance: The core material with high fireproof rating is used to ensure the fireproof rating of the clean room panel.
Strong corrosion resistance: The three types of clean room panels supplied have good corrosion resistance.
Good cleanliness performance: The unique coating design makes it difficult for dust to accumulate on the panel surface, and can effectively inhibit bacteria and mold.
Convenient and efficient installation: Generally, they are standard panels with uniform size specifications, which are convenient and quick to install.

Clean Room Panel Applications

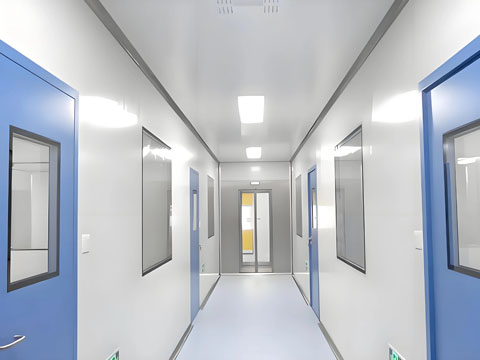

Medical Industry

Operating room, ICU, biosafety cabinet, medical consumables production, etc.

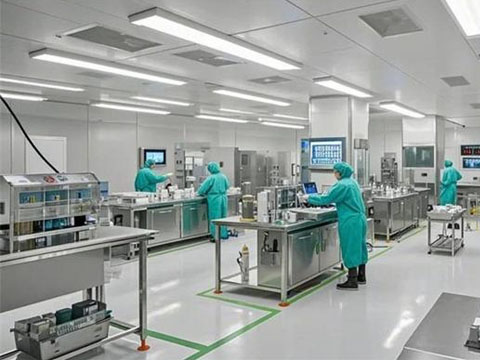

Biopharmaceuticals

Sterile Preparation Workshop, Vaccine Production Line, Genetic Laboratory, Filling Area, etc.

Food Factory and Cosmetics Factory

Dairy Filling, Mask Production, Condiment Packaging, etc.

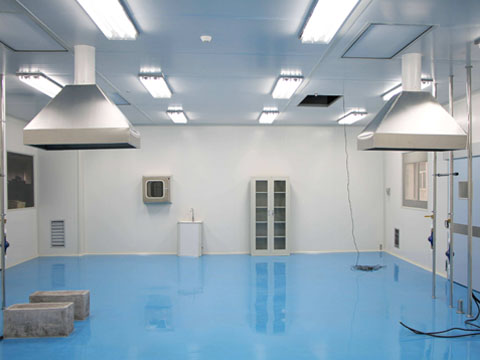

Scientific Research and Military Industry

High Energy Physics Laboratory, Spacecraft Assembly, etc.

Semiconductor Manufacturing

Chip Manufacturing, LCD Panel Production, Hard Drive Assembly, Photolithography Workshop, etc.

High product quality: strictly inspected metal products are used as base materials, core materials are also selected from high-quality products, and advanced production equipment is used to ensure product quality.
Full product line: With galvanized production lines, color-coated steel production lines, hundreds of press-forming equipment, metal composite sheet production lines, etc., the product range is complete and the price is guaranteed.
Integrity enterprise: We are an enterprise that attaches importance to integrity, quality and contracts and has passed ISO 9001: 2015 certification. We are an honest enterprise.
Rich experience: With more than 17 years of experience in the steel industry and more than 14 years of export experience, we have successfully exported to more than 14 countries and regions, and our products are well received by customers.
After-sales worry-free: 24/7 support, professional and experienced service team, from production to delivery, and every link of subsequent product performance, to solve any of your problems.

Wanzhi Steel is a leading supplier of clean room panels in China, with rich production and industry experience, and in-depth cooperation with logistics companies, whether it is product quality or transportation cost, can achieve the best. If you have any needs, please feel free to contact us.
