Food Trailer
Introduction

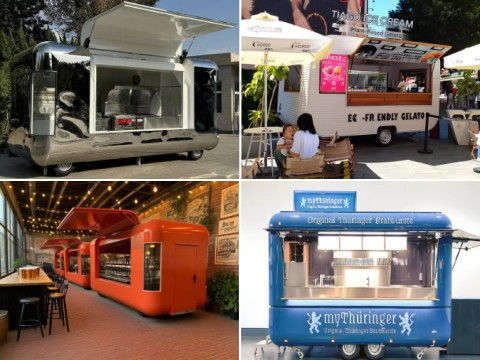

Food Trailers are integrated mobile catering equipment based on towable/self-propelled vehicle frames, equipped with professional cooking, storage, and water supply systems. They can be quickly deployed in night markets, parks, and commercial districts, offering a “plug-and-play” mobile catering solution. They are available in various types, including towable food trailers, catering trucks, and coffee trucks, suitable for diverse catering businesses such as snack shops, cafes, and bakeries.
Wanzhi Steel offers a variety of customized solutions, including spray-painted designs, round/square shapes, and PPGI steel/stainless steel. No matter where your project is located, our extensive internal configuration options are available for you to choose from.
Specifications Of Various Food Carts
1. Trailer Food Cart Specification
| Length | 3m/4m/5m (Customizable) |
| Width | 2.2m/2.4m (Optional) |
| Height | 2.5m/2.6m |
| Operating Length | 2.8m/3.8m/4.8m |
| Frame Material | Hot-dip galvanized square steel (40×40×2.0mm) |
| Body Material | Color steel plate + insulation layer (stainless steel optional) |
| Weight | 800kg/950kg/1100kg |
| Maximum Load Capacity | 500kg |
| Towing Method | Ball-joint traction (suitable for SUVs/trucks) |
| Power Supply | Power supply: 220V/380V; Generator: 5kW/8kW |
| Accessories | 4 support jacks + mechanical brake + manual brake |
| Fresh Water Tank Capacity | 100L/150L |
| Waste Water Tank Capacity | 80L/120L |
| Water Tank Configuration | Single/Double slot (Optional) |
| Standard Equipment | 304 stainless steel worktable, exhaust fan, LED lighting, storage rack, basic circuitry |
| Optional Equipment | Fryer, teppanyaki grill, oden machine, logo, vehicle decals, awning |
| Adaptability | Mobile shop for hamburgers, fried chicken, barbecue, and spicy hot pot |
| Compliance Features | Meets food hygiene standards |
2. Coffee & Beverage Trailer Specification
| Length | 4m/5m/6m (customizable) |
| Width | 2.4m |
| Height | 2.6m (including reserved height) |
| Operating Length | 3.8m/4.8m/5.8m |
| Frame Material | Hot-dip galvanized square steel (50×50×2.5mm) |
| Body Material | Fiberglass + insulation layer (stainless steel optional) |
| Weight | 900kg/1050kg/1200kg |
| Maximum Load Capacity | 600kg |
| Towing Method | Ball-joint traction (suitable for trucks) |
| Power Supply | Power supply: 220V; Generator: 8kW |
| Accessories | 4 heavy-duty support jacks + dual-circuit braking system |
| Fresh Water Tank Capacity | 150L/200L |
| Waste Water Tank Capacity | 120L/160L |
| Water Tank Configuration | Double sink |
| Standard Equipment | 304 stainless steel worktable, built-in coffee machine, mini refrigerator, sink, exhaust fan |
| Optional Equipment | Ice maker, milk frother, syrup rack, display refrigerator, Bluetooth speaker, awning, worktable |
| Adaptability | Coffee, milk tea, juice, sparkling water, light salad, simple meals |
| Compliance Features | Meets food hygiene standards |
3. Pizza Baking Truck Specification
| Length | 5m/6m/7m |
| Width | 2.4m |
| Height | 2.7m (including oven height) |
| Operating Length | 4.8m/5.8m/6.8m |
| Frame Material | Hot-dip galvanized square steel (50×50×2.5mm) |
| Body Material | Stainless steel + thickened insulation layer |
| Weight | 1100kg/1250kg/1400kg |
| Maximum Load Capacity | 800kg |
| Towing Method | Ball-joint traction (suitable for heavy-duty trucks) |
| Power Supply | Power supply: 380V; Generator: 10kW |
| Accessories | 6 support jacks + reinforced braking system |
| Fresh Water Tank Capacity | 100L/150L |
| Waste Water Tank Capacity | 80L/120L |
| Water Tank Configuration | Single slot |
| Standard Equipment | 304 stainless steel worktable, oven compartment, warming cabinet, storage rack, exhaust fan |
| Optional Equipment | Commercial pizza oven, proofing box, display refrigerator, heat lamp, awning, illuminated logo |
| Adaptability | Suitable for hot baked goods such as pizza, bread, egg tarts, croissants, and other baked goods |
| Compliance Features | Complies with catering fire safety standards |
4. Self-propelled Multi-functional Food Cart Specification
| Length | 5m/6m/8m |
| Width | 2.5m |
| Height | 2.8m |
| Operating Length | 4.8m/5.8m/7.8m |
| Frame Material | Carbon steel frame + anti-rust coating |
| Body Material | Aluminum alloy body + insulation layer |
| Weight | 1500kg/1700kg/2000kg |
| Maximum Payload | 1000kg |
| Energy Type | Electric / Fuel |
| Range | 55KM (Electric)/300KM (Fuel) |
| Top Speed | 40km/h |
| Power Supply | Power supply: 220V/380V; Generator: 12kW |
| Fresh Water Tank Capacity | 200L |
| Waste Water Tank Capacity | 160L |
| Water Tank Configuration | Three-sink design |
| Standard Equipment | 304 Stainless steel worktop, cooking area, refrigerator/freezer, three-sink design, navigation, parking brake |
| Optional Equipment | Fuel stove, electric fryer, advertising screen, air conditioner, awning, customized interior panels |
| Compatibility | Universal for all categories, supports combined operation |
| Compliance Features | Complies with multiple international catering standards, provides CE/ISO certification documents |
Features & Advantages
- Ready to Use Immediately, Quick Start: Pre-installed cooking equipment and water/electricity systems allow for setup and operation in just 1 hour, saving 90% of the time compared to brick-and-mortar stores.
- Versatile and Flexible: The towable design allows for easy relocation by vehicle, adapting to various indoor and outdoor scenarios; long battery life ensures flexible coverage of different traffic points.

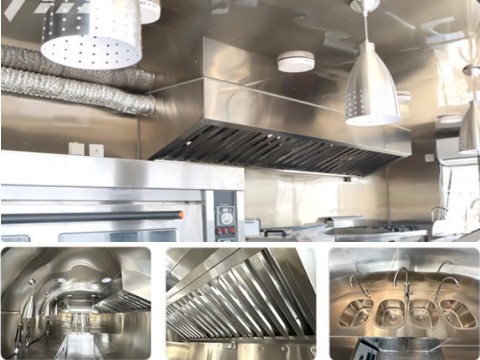

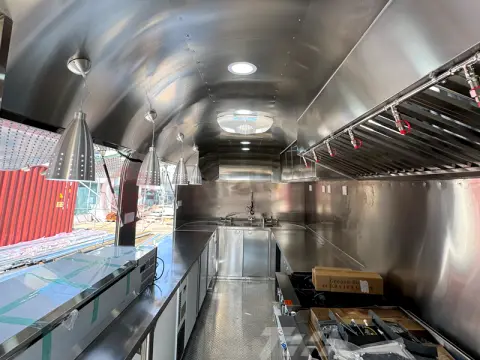

- Professional Configuration, Safe and Compliant: Standard features include a stainless steel worktable, water supply and drainage system, and ventilation equipment; customized sanitation facilities are available, meeting catering industry standards.
Core Categories
1. Classification by Purpose
- Snack Cart: Pre-equipped with fryer, griddle, and range hood, suitable for street food such as hamburgers, fried chicken, and barbecue;

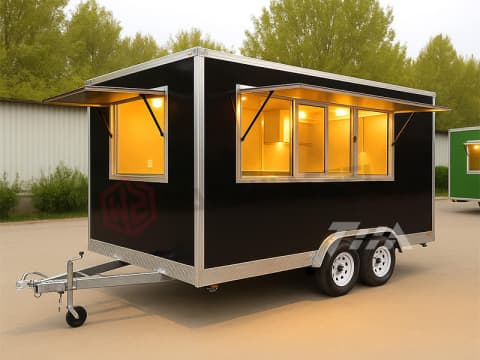

- Coffee Cart: Equipped with coffee machine, ice maker, and refrigerator, mainly serving light beverages such as coffee and milk tea;
- Bakery Cart: Equipped with oven and warming cabinet, suitable for baked goods such as bread and pizza.
2. Classification by Structure
- Trailer Cart: Primarily trailer-mounted, flexible in size (3m-8m customized), convenient for transportation;

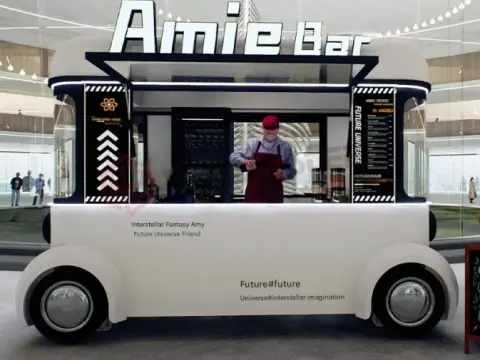

- Self-propelled Cart: Self-powered, long-range, suitable for mobile businesses operating over long distances.
Application

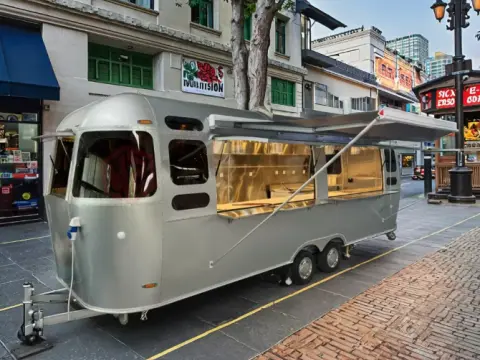

- Urban commerce: Fast food, light drinks, and snack shops in office buildings, downtown business districts, pedestrian streets, and industrial parks.
- Outdoor Recreation: Mobile shops in parks/scenic spots, campsites, beaches, and lakeside leisure areas, featuring coffee, creative light meals, specialty snacks, pizza, and hot and cold drinks.
- Temporary Events: Music festivals/concerts/sporting events, night markets/weekend markets, team building/exhibition settings, tea breaks, burger trucks, pizza trucks, and casual dining trucks.
- Themed Food Trucks: Dessert trucks at popular photo spots, craft beer trucks, and rectangular mobile snack trucks around campuses.
Standard & Optional Configurations
Standard Configuration
- Frame: One-piece steel structure with rust-proof coating, equipped with 4 support jacks;

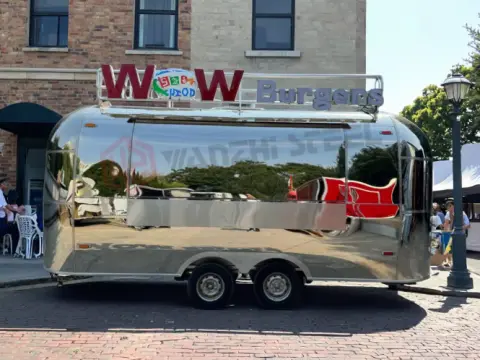

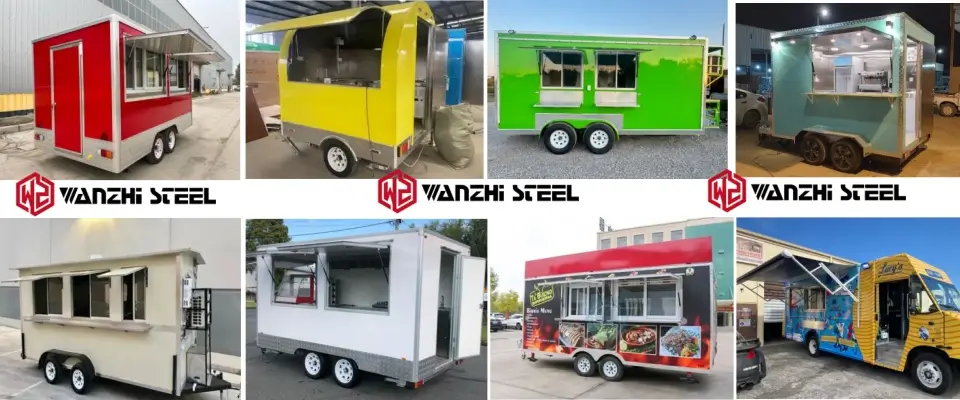

- Shape: Rectangular, round/arc, trapezoidal, cartoon-style.

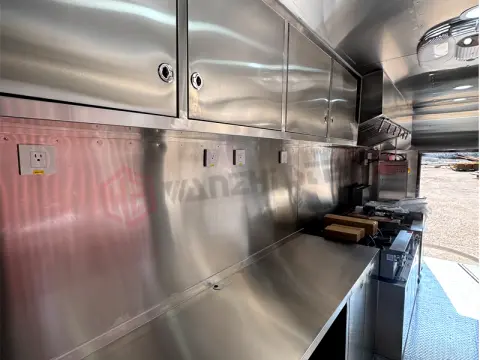

- Operating area: 304 stainless steel control panel, basic electrical system (110V/220V/380V optional);
- Water and electricity system: Hot and cold water supply + clean/waste water tanks, lighting + sockets;
- Safety features: Mechanical brake + manual brake, ventilation system.

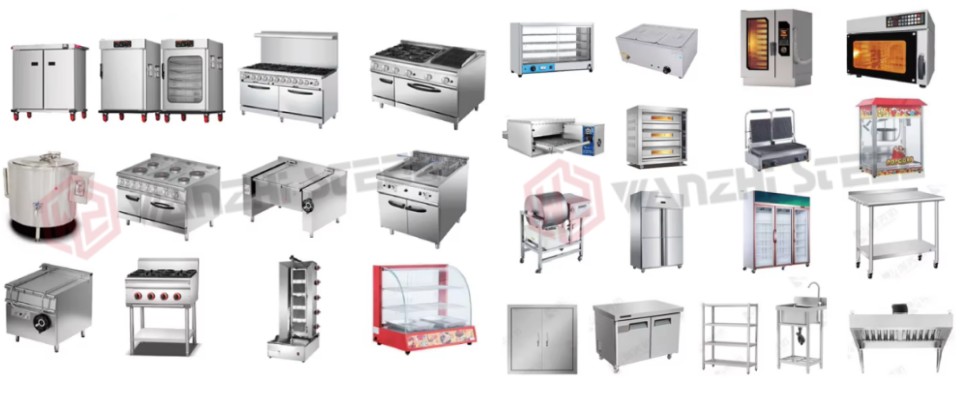

Optional Configuration
- Cooking equipment: Fryer, teppanyaki grill, coffee machine, pizza oven, generator;
- Storage facilities: Multi-tiered shelves, refrigerator;

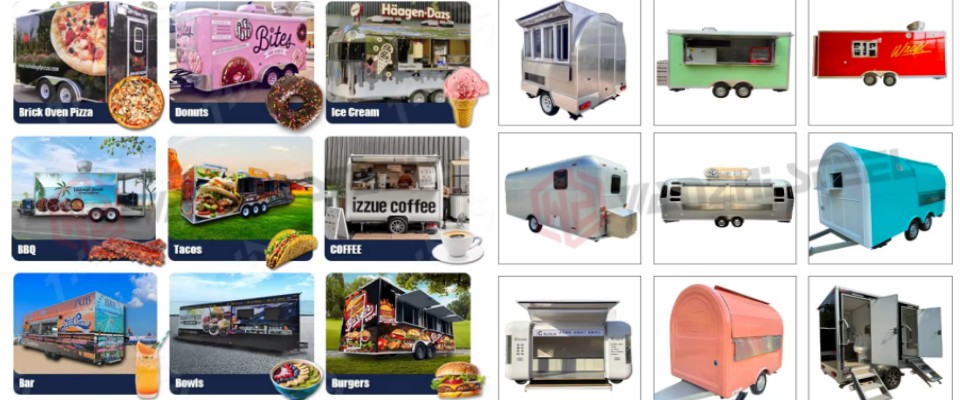

- Exterior customization: Vehicle body color, logo decals, window style.
Food Trailer For Sale– Wanzhi Steel
Why Choose Us?
1. Customizable: Supports customized equipment configurations for various business formats such as snacks, coffee, and baking, saving costs.
2. Quality Assurance: Steel structure + rust-proof coating, 304 stainless steel worktable, original materials from the manufacturer, ensuring quality.
3. Global Delivery: Exported to Europe, America, Australia, New Zealand, the Middle East, etc., providing sea freight logistics and customs clearance document support.
4. Low-Cost Startup: Single unit can be customized, costing only 30% of traditional brick-and-mortar stores, enabling rapid startup in the catering industry.
Wanzhi Steel is a leading professional supplier of container houses and catering trucks in China. With years of experience in production and export, we offer you more efficient and economical space solutions from a professional perspective. Contact us now for free customization services.
