Galvanized C Purlins

Galvanized C Purlins Specification

Product Name	Galvanized C Purlins
Thickness	1.5-3.0mm
Height	80-250mm
Width	50mm/60mm/70mm/80mm
Flange width	15mm/20mm
Length	1-12m or as per your requirement
Material	Q195, Q235, Q345, Q355, ST37, ST52, SS400, etc.
Processing services	Cutting, punching, painting, etc.
MOQ	10 tons
Packaging	Seaworthy packaging or as per customer requirements

Galvanized C Purlins Weight

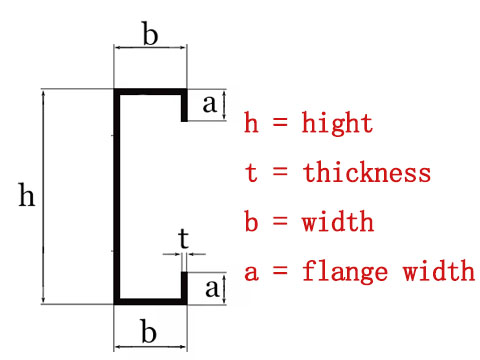

Calculation formula

Weight (kg) ≈ [ (h+b×2+a×2)×t – t²×4 ] × 7.85 ÷ 1000

Note: h, b, a, t are all in mm.

Theoretical weight table

Size	Thickness (mm)	Theoretical weight (kg/m)	Weight for 6m length (kg)
100×50×20×1.5	1.5	2.41	14.46
100×50×20×1.8	1.8	2.87	17.22
120×60×20×2.0	2	3.84	23.04
150×60×20×2.2	2.2	4.63	27.78
180×70×20×2.5	2.5	6.28	37.68
200×70×20×2.5	2.5	6.72	40.32

Galvanized C Purlins Product Advantages

Strong anti-corrosion ability

The surface adopts hot-dip galvanizing process, which has strong corrosion resistance and is suitable for harsh environments such as humidity and high corrosion.

Lightweight and high-strength

Light weight, reducing structural load, and at the same time has high bending strength (cold bending processing), strong bearing capacity.

Excellent cross-sectional performance

C-shaped cross-sectional design, excellent bending performance in the vertical direction, effectively bearing roof/wall loads, and ensuring structural stability.

Easy installation

Can be customized by cutting, punching, etc., and fixed on site by bolts, purlins or welding, with a short construction period and no need for large equipment.

Wide applicability

The choice of different coating thicknesses meets the anti-corrosion requirements of different projects; the choice of different materials (such as Q195/Q235/Q345, etc.) meets the strength requirements of different projects.

Galvanized C Purlins Applications

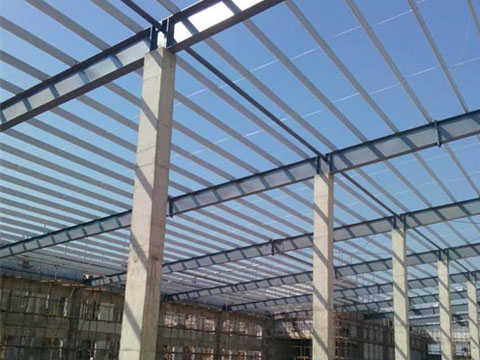

• Construction: roof/wall support for steel structure factories, warehouses, gymnasiums and stations, etc., used with color steel plates or sandwich panels.
• Agricultural buildings: frames for greenhouses and breeding sheds, structural support for agricultural product storage warehouses, etc.
• Temporary buildings: steel structures for folding container houses, modular container houses, expandable container houses, etc.

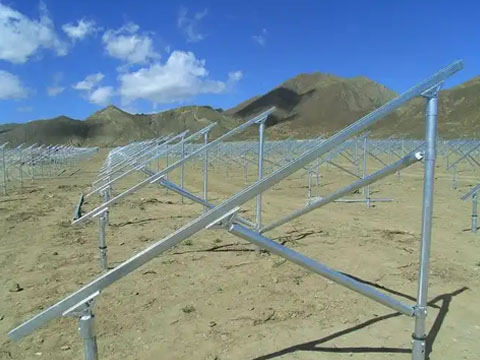

• Other applications: photovoltaic brackets, indoor and outdoor decoration racks, display racks, etc.; skeleton structures for supermarkets, exhibition halls, and canopies.

• Strictly select high-quality raw materials, multiple advanced processing equipment, the product cutting surface is flat, smooth and burr-free, and the appearance quality is high.
• The product has high strength, strong corrosion resistance, large bearing capacity, long service life, strict factory quality inspection, reliable quality and stable performance.
• Complete specifications and sufficient inventory can quickly match the C purlins and supporting products you need according to your needs, and support customized specifications.

Wanzhi Steel is an ISO 9001 and ISO 14001 certified manufacturer with 3 galvanized steel production lines, and has longitudinal shearing, cutting, profiling, punching and other equipment, which can provide a rich variety of galvanized steel products. With many years of production and export experience, we can provide you with one-stop procurement services. For more details, please contact us.
