Introduction

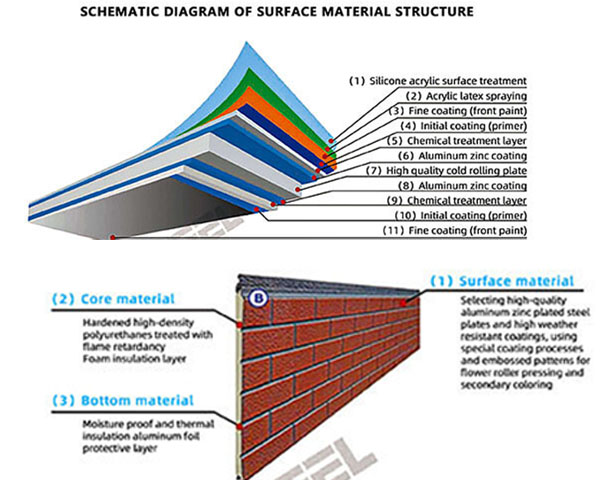

Wanzhi Steel’s metal carved board is made of color coated steel (substrate galvalume steel) as the surface metal plate, in the middle of which is high-density rigid foamed polyurethane with flame retardant treatment, and in the bottom is the protective layer of aluminum foil which has the function of heat insulation and heat preservation and moisture-proof.

The wall panels of metal carved boards have the functions of waterproof, fireproof, sound insulation, noise reduction, etc., and they are rich in colors and patterns, and are highly decorative. We have more than hundreds of patterns + color combinations, the panels are environmentally friendly materials, and the installation is relatively simple, if you are interested, please contact us.

Send Us Email

Leave a Message

Metal Carved Board Specifications

Product Name	Metal Carved Board
Total thickness	16mm
Standard size	Length:2800mm / 3800mm or customized
Standard size	Width: 380mm
Surface coating	HDP or PVDF
Surface material	Coating = AZ100g/㎡
Surface material	3mm thick galvalume steel
Core material	Rigid polyurethane foam
Back Material	Aluminium foil protective layer
Weight	3.6kg/㎡
MOQ	5 tons

Metal Carved Board Physical Properties

Service life	15-25 years
Fire rating	B1
Waterproof grade	0.08%
Salt Mist Resistance	>1000h
Wind resistance	8.0kpa
Thermal conductivity system	0.018w/m.k
Thermal organisation	2.09W/㎡ k
Compressive strength	52.7kpa

Product Patterns

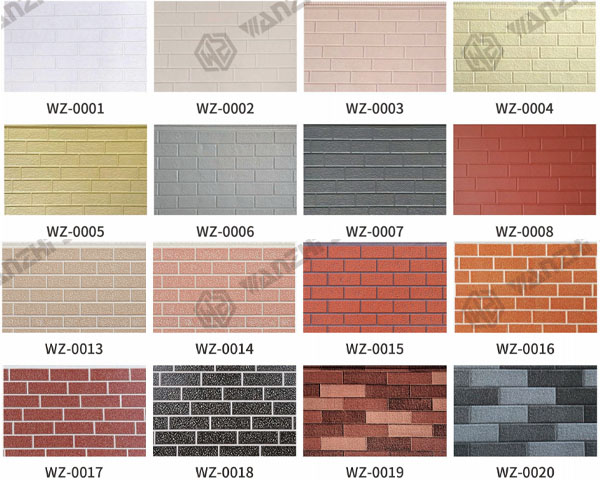

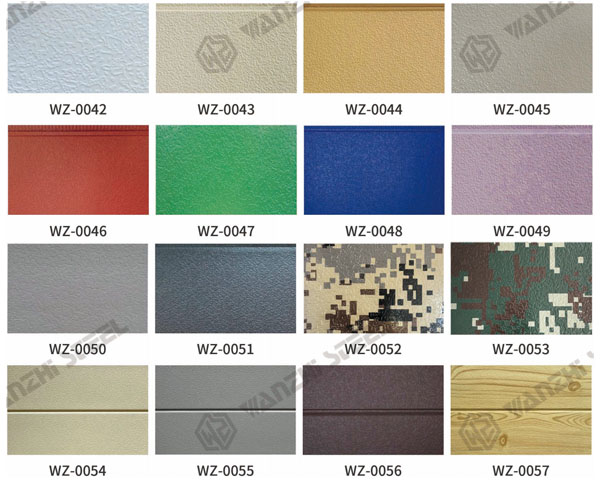

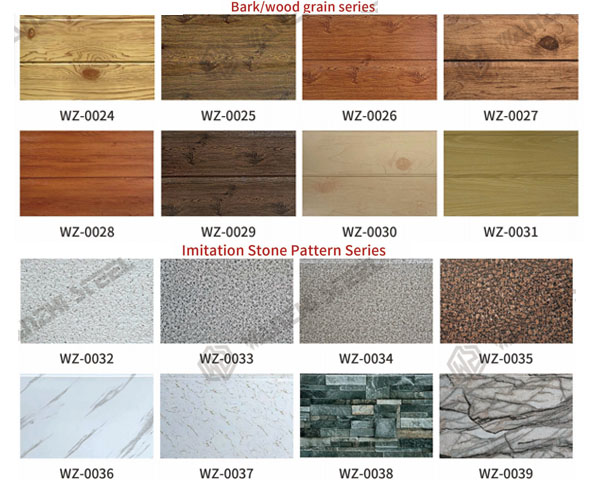

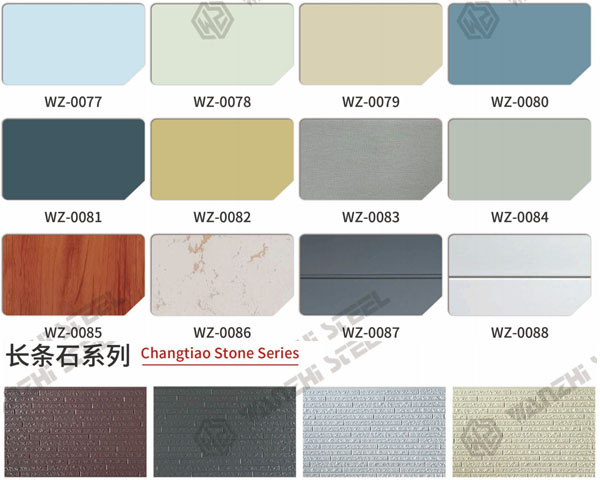

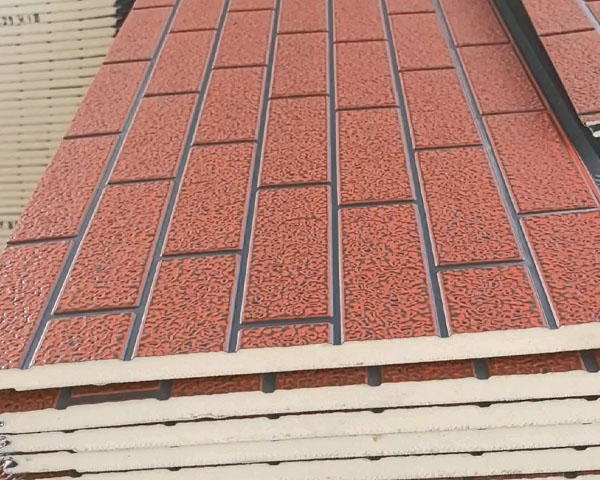

Product patterns include solid color, brick pattern, marble pattern, wood pattern, elastic pattern, etc.

Only some of the patterns are shown here. Please contact us for more patterns.

Metal Carved Board Advantages

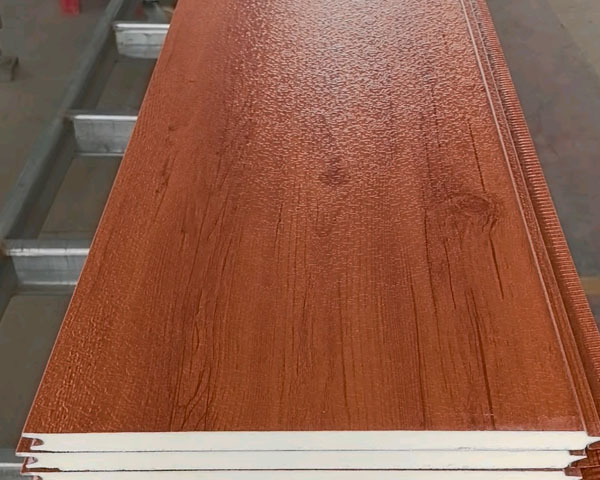

Strong decorative: the surface has a variety of patterns and colors to choose from, the pattern includes wood grain, stone grain, brick pattern, etc., the effect is realistic.
Long service life: the substrate is corrosion-resistant and high temperature-resistant, the surface coating is weather-resistant, and does not fade or crack with long-term use.
Convenient installation: light weight, time-saving and labor-saving handling; simple installation method, and not affected by the season and environment.
Environmental protection and energy saving: the middle core material is composed of high-density polyurethane foam, which is an environmentally friendly material and can keep heat and heat.
Other advantages: metal engraved panel also has the advantages of waterproof and moisture-proof, shock resistance and crack resistance, sound insulation and noise reduction.

Metal Carved Board Applications

Sculptured metal panels are commonly used in building exterior decoration, remodeling of old buildings, interior decoration, manufacturing prefabricated buildings, etc. The main application scenarios are as follows:

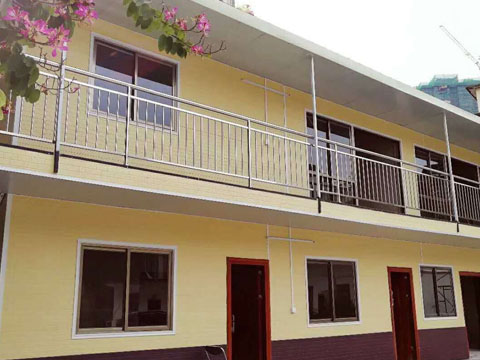

Building wall decoration: villas, apartments, shopping malls, office buildings, schools, hospitals, libraries and so on.
Old building renovation: used for exterior wall renovation in old neighborhoods, and exterior wall renovation of some old factories.
Interior decoration: used for indoor background wall, partition, ceiling, etc.

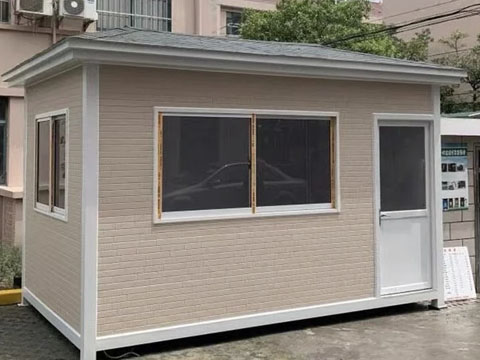

Prefabricated buildings: modular houses, folding houses, expandable container houses, etc.

Using GL steel as the substrate, environmentally friendly core material, long service life.
Supports customization of patterns, colors, sizes, etc. to meet personalized needs.

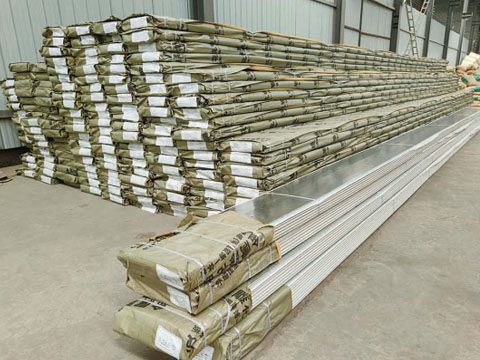

The source factory has sufficient inventory and can deliver large orders quickly.

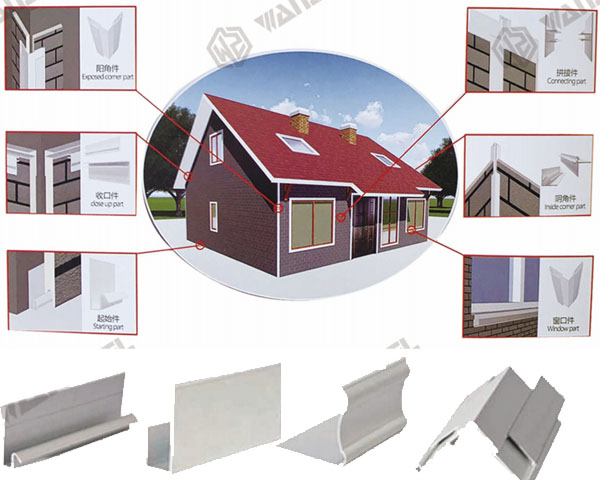

The installation is very convenient, dry hanging construction, and installation and technical guidance are provided.

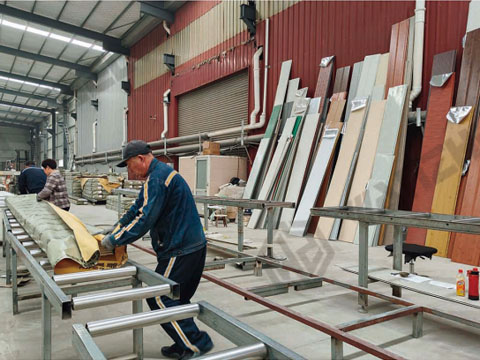

Wanzhi Steel is a manufacturer specializing in the production of metal sandwich panels. Metal carved panels are our featured products. If you have a project that requires metal carved panels, please contact us.
