Introduction

Metal profile sheets are made of metal sheets through cold processing processes such as rolling and molding. They have cross-sectional shapes such as wavy, trapezoidal, and ribbed. They have excellent structural functions and decorative effects, so they are widely used in many industries.

Wanzhi Steel produces metal profile sheets of various materials and types, full size, strong wind and earthquake resistance. If you have any needs, please feel free to contact us.

Send Us Email

Leave a Message

Metal Profile Sheets Specification

Product Name	Metal Profile Sheets
Thickness	0.4mm – 1.5mm
Width	600mm – 1250mm
Length	2m, 3m, 6m, 9m, 12m or cut as required
Wave height	25mm – 80mm
Material	Galvanized steel, galvalume steel, color-coated steel, aluminum alloy
Type	Trapezoidal, corrugated, ribbed, etc.
Tensile strength	280MPa – 550MPa
Yield strength	230MPa – 420MPa
Coating type	SMP,PVDF
Standard	GB,ASTM, EN
MOQ	10 tons

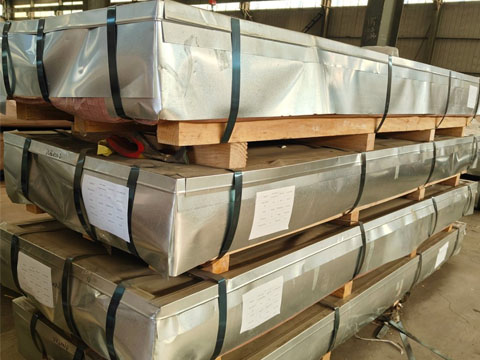

Packaging	Seaworthy packaging or as per customer requirements

What metal profile sheets can we provide?

Galvanized steel profile sheets
Alu-zinc steel profile sheets
Color-coated steel profile sheets
Aluminum alloy profile sheets
Perforated aluminum profile sheets

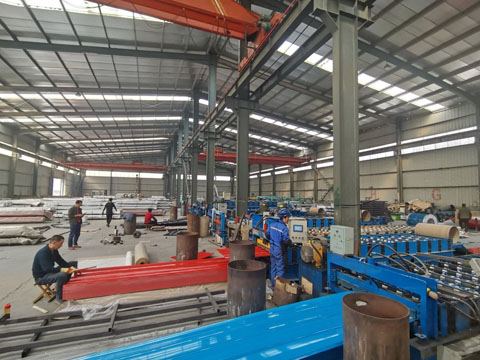

Some of the factory's press equipment — Some of the factory’s press equipment

Production video

Metal Profile Sheet Product Advantages

Lightweight and high strength, reducing load; strong resistance to compression and bending.
Can be customized in various shapes and colors to meet different architectural styles.
The substrate is a corrosion-resistant material, and the surface coating is highly weather-resistant and very durable.
It has multiple functions such as fire prevention, waterproofing, heat insulation, sound insulation, and thermal insulation.
Prefabricated production, simple and fast on-site installation, can shorten the construction period.

Metal Profile Sheet Applications

Roofing engineering: roofs of various industrial plants, warehouses, gymnasiums, exhibition halls, airports, stations and other large-span buildings and civil residences.

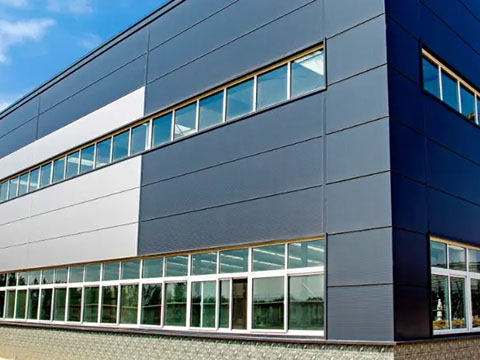

Wall engineering: used for exterior wall enclosures of factories and workshops; curtain walls and decorative facades of commercial buildings; temporary building enclosures.
Floor engineering: in some high-rise buildings and large commercial buildings, it can be used as a floor deck.
Other applications: cold storage insulation walls/roofs, container houses, mobile board houses, folding houses, etc.

With production lines for coated steel products, color-coated steel products, hundreds of profile equipment, and source factories, quality and price are guaranteed.
The products are strictly tested, including size, appearance, performance, and composition, to ensure that the products meet user needs.
The company has passed ISO 9001, ISO 14001 and other certifications. With more than 14 years of export experience, it has successfully exported to more than 120 countries.

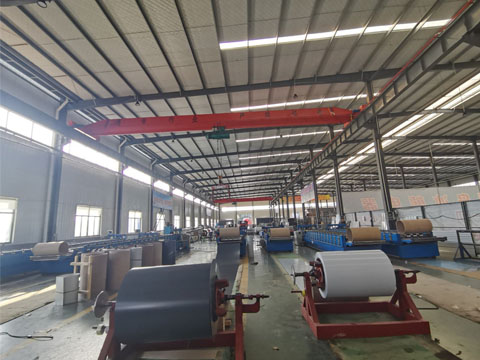

Color coated steel coil is being profiled

Wanzhi Steel is a leading manufacturer of metal profile sheets in China. With hundreds of profile equipment, we can supply you with various types of metal profile sheets, different colors and patterns to meet the needs of various projects. If you are interested in metal profile sheets, please contact us.
