Introduction

Modular worker dormitories are temporary accommodations that are prefabricated in factories, transported to construction sites, and quickly assembled. They are characterized by flexible expansion and easy disassembly and relocation. Typically, they integrate basic living facilities such as water, electricity, and sanitation, effectively meeting the centralized accommodation needs of the construction and engineering industries.

Wanzhi Steel modular worker dormitories use standard shipping containers as basic modules, and a single dormitory unit can be assembled on-site within 2 hours, providing a complete product from basic accommodation units to a complete living community.

Send Us Email

Leave a Message

Basic Dormitory Unit Specification

Suitable for	3 people
Unfolded size	6058mm(L)×2990mm(W)×2896mm(H)
Folding size	6058mm(L)×2438mm(W)×2896mm(H)
Living area	16.5㎡ (indoor) + 3.2㎡ (balcony)

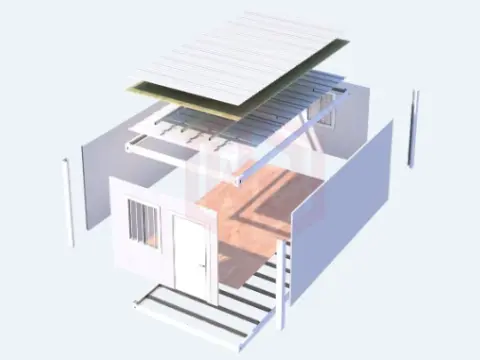

Structural System	80×40×2.5mm rectangular hot-dip galvanized steel pipe frame
Walls/Roofs	75mm PU sandwich panel (PIR core material, fire retardant B1 rating)
Floor structural layer	1.5mm galvanized steel corrugated base plate
Floor load-bearing layer	18mm waterproof OSB board (P5 rating)
Floor surface	2.0mm commercial PVC flooring (anti-slip rating R10)
Door and window configuration	Aluminum alloy windows with double glazing, steel security door with smart lock
Electrical system	Independent electrical box, LED lighting, 6 five-hole sockets, and reserved air conditioner interface.
Water supply and drainage	PPR water supply pipes, UPVC drainage pipes, electric water heaters

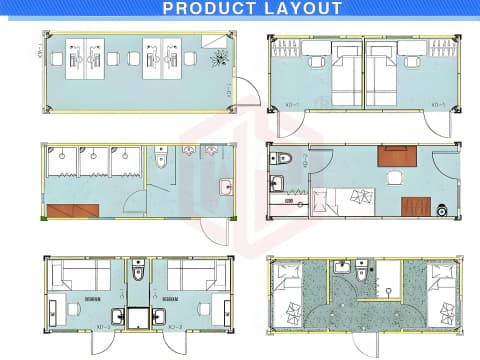

Dormitory Configuration Plan

50-person campsite: Recommended 16 triple rooms + 2 bathrooms + 1 canteen, approximately 600㎡ of land area.

100-person campsite: 33 triple rooms + 4 bathrooms + canteen + laundry + medical facilities, approximately 1200㎡ of land area.

200-person campsite: 66 triple rooms + 8 bathrooms + complete community facilities, approximately 2500㎡ of land area.

Scenario-Based Product Recommendations

Construction site camp dormitory housing: 40-foot expandable container houses are recommended as dormitory units, paired with prefabricated emergency housing, enabling rapid deployment of camps for over 200 people.
Emergency resettlement housing: A combination of foldable and modular container houses is a suitable option for emergency disaster relief and temporary schools.

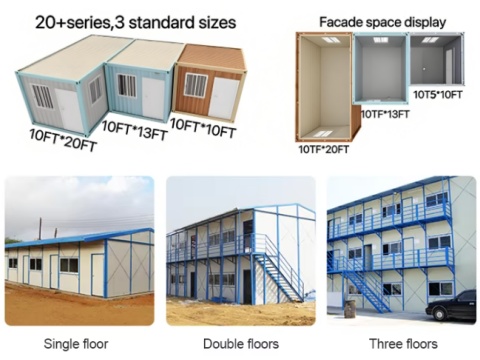

Extended Model Specifications

Model	Unfolded dimensions (L×W×H)	Shipping dimensions	Extension method	Area (m²)
2-person room	6058×2438×2896mm	6058×2438×2896mm	No expansion	13.2
3-person room	6058×2990×2896mm	6058×2438×2896mm	Single-sided expansion	19.7
4-person room	6058×3542×2896mm	6058×2438×2896mm	Double-sided expansion	21.9
Family room	12192×2990×2896mm	2×6058×2438×2896mm	Double-box assembly + single-sided expansion	35.2

Features

Rapid Deployment: Folds into a single container for transport, resulting in low logistics costs. Unfolds a single unit in 2 hours and connects to water and electricity systems in 8 hours. Features adjustable steel legs to adapt to terrain elevation differences of ±15cm.
High Comfort: Wind resistance up to level 12, earthquake resistance up to magnitude 8, rock wool/PU sandwich panel wall insulation and soundproofing, compatible with fresh air systems.
Comprehensive Living Facilities: Optional features include separate wet and dry bathrooms, integrated same-floor drainage, direct discharge system without septic tank, pre-installed electrical systems, and modules for a canteen, laundry room, and medical station.

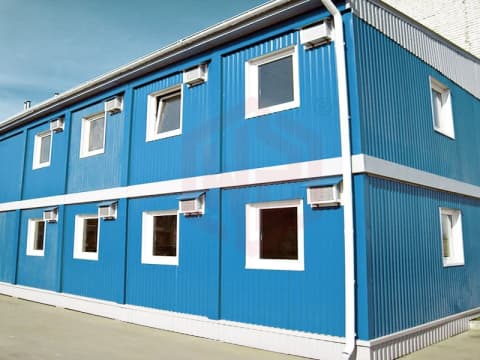

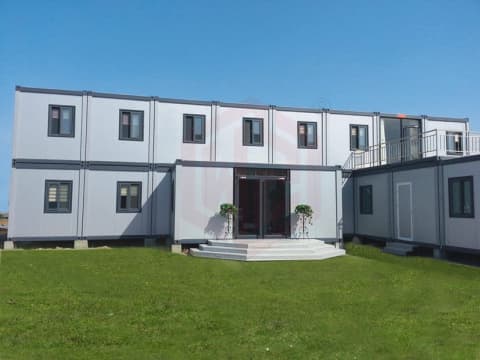

prefab dormitory for workers and classroom

Advantages

More robust than prefabricated houses, the steel frame structure ensures a lifespan of up to 20 years and 100% reusability.
More comfortable than converted shipping containers, with heat and sound insulation design, maintaining a 15°C temperature difference between indoors and outdoors.
Faster than traditional construction, a 100-person camp can be occupied within a week, saving 60% of the initial construction time.
More flexible than fixed buildings, it can be relocated to a new construction site as a whole, with a residual value of 70%.
More economical than decentralized procurement, Wanzhi Steel’s factory wholesale prices minimize your costs.

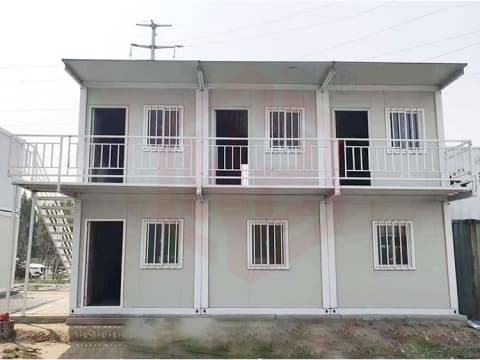

Modular Construction for Workforce Housing

Applicable Scenarios

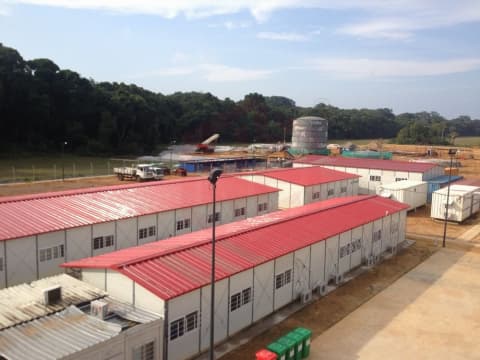

Temporary Housing at Construction Sites: Temporary camps for construction workers on railway, highway, housing, and bridge projects; relocatable after project completion.

Post-Disaster Emergency Resettlement: Temporary housing and emergency shelters in areas affected by earthquakes, floods, typhoons, and fires. Provides rapid accommodation.

Long-Term Housing for On-Site Work: Serving as barracks for mining, oilfield exploration, and photovoltaic power station construction; can be directly transported to the site for long-term deployment.

Medical Isolation Housing: During periods of high influenza or viral outbreaks, serves as temporary isolation rooms, observation rooms, temporary offices, or treatment rooms, separated from the general population for convenient management and consultation.

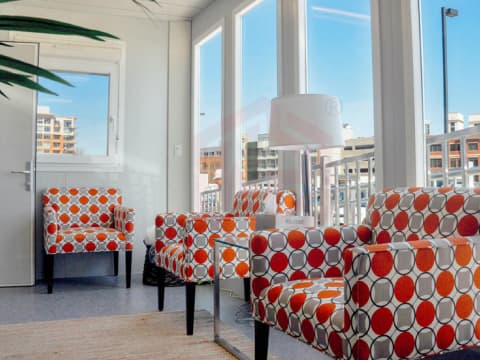

office and worker's modular units — office and worker’s modular units

Optional Upgrade Configuration

1. Extreme environments

For high-altitude/high-temperature regions, wall panels are upgraded to 100mm VIP vacuum insulation panels.
Triple-glazed windows with Low-E coating.
Antifreeze water system.

2. Intelligent Management

Facial recognition access control
Electricity safety monitoring and automatic power-off
Indoor environmental monitoring

3. Rapid deployment

Hydraulic automatic deployment system
Integrated water and electricity quick connectors
Off-grid solar power system

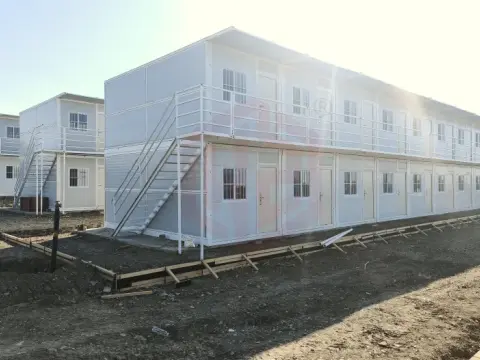

Workers' Dormitory Prefab Units — Workers’ Dormitory Prefab Units

Recommended Dormitory Facilities

Centralized bathroom unit: 1:10 ratio of squat toilets, 1:8 ratio of showers, air-source heat pump central hot water.
Kitchen/dining room unit: Gas/induction cooktop, forced ventilation, seating for 40 people.
Laundry room unit: 4 x 10kg washing machines, 2 x 8kg dryers.
Medical room unit: Basic first aid equipment, isolation observation area, medicine storage cabinet.
Recreation room unit: TV/projector, basic fitness equipment.

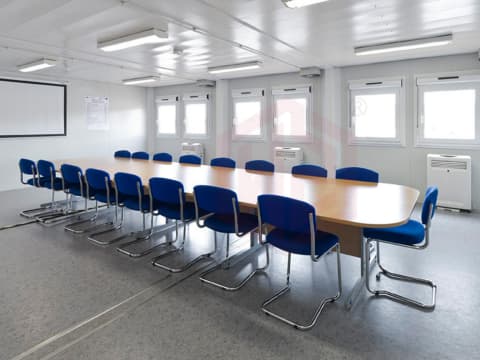

Meeting room: Table and chair set, 2 x filing cabinets, water dispenser.

Third-Party Testing and Certification

Structural Safety: Certified by CCS and meets ISO wind load testing standards.
Fire Resistance: The wall system has passed the EN 13501-1 fire resistance test.
Environmental Certification: Materials comply with EU RoHS and REACH environmental standards.

Why Choose Us?

Quality Control: Implements a three-tiered testing system, providing one-stop service from consultation, design, production delivery to installation guidance.
Own Steel Mill: Produces high-quality galvanized C-shaped purlins, color-coated steel sheets, and metal sandwich panels, handling everything from raw materials to finished products in-house.
Flexible Customization: Offers options for single and multi-person rooms, as well as customization of modules such as bathrooms, canteens, and dormitories, including customization of unit types, configurations, and appearance.
