Introduction

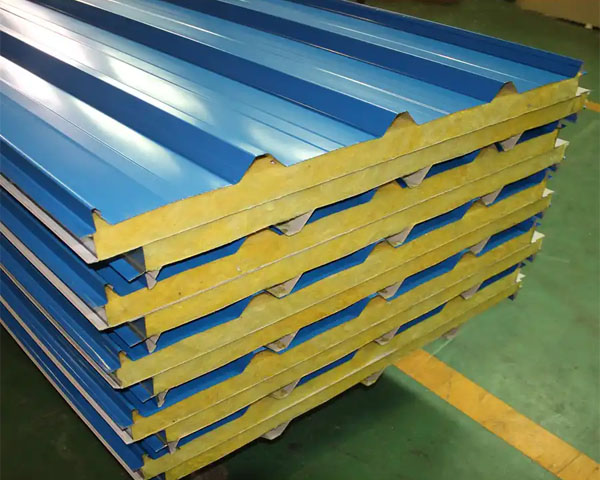

Roof sandwich panels, also known as sandwich roof panels, are a type of building material that consists of two layers of metal sheets as the surface layer, with a core material in the middle that has functions such as fire prevention, sound insulation, and heat preservation. It is a building material that is formed by rolling, foaming, and bonding with high-strength adhesives. It has multiple functions such as high strength, heat preservation, heat insulation, and waterproofing.

We have roof sandwich panels of various sizes, colors, and patterns, which are highly decorative, have a long service life, and are easy to install. If you have purchasing needs, please tell me the product specifications and quantity, and we will provide you with a quote within 12 hours.

Send Us Email

Leave a Message

Clean Room Panel Specifications

Product Name	Roof Sandwich Panels
Total thickness	40mm, 50mm, 60mm, 75mm, 80mm, 100mm, 150mm, etc. or ≤250mm
Metal panel thickness	0.4 – 1.2mm
Width	950mm, 970mm, 1000mm, 1150mm, 1200mm, etc. or customized
Length	1 – 12m or cut as required
Thermal conductivity	0.018 – 0.045 W/m·K
Panel material	Color coated steel, galvanized steel, galvalume steel, aluminum alloy, etc.
Core material	EPS, PU, RW, Glass wool, etc.
Fire rating	A1, Aa, B1, B2
Colors	White, gray, blue, red, green, gold, etc or customized
Pattern	Wood grain, stone grain, brick grain, camouflage grain, floral pattern or customized
Coating type	PE,HDP,SMP,PVDF
Standard	GB,EN,ASTM
MOQ	5 tons
Packaging	Seaworthy packaging or as per customer requirements

Fire protection level: A1 (non-combustible) > A2 (non-combustible) > B1 (difficult to burn) > B2 (combustible)

Roof Sandwich Panels Price Per Square Meter

The price of roof sandwich panels is affected by factors such as metal panel material, core material type, thickness, coating, production process, and purchase quantity. The price will fluctuate. For accurate price information, you can leave us a message for inquiry. The following is the reference price of roof sandwich panels.

Price per square meter of color steel sandwich panels: 4-30 US dollars
Price per square meter of stainless steel sandwich panels: 30-120 US dollars
Price per square meter of aluminum alloy sandwich panels: 40-100 US dollars

What Types of Roof Sandwich Panels Can We Supply

Classification by Core Material

Glass wool sandwich panel

Features: Class A fire protection, excellent sound absorption performance (better than rock wool), low strength.
Application: Theaters, computer rooms and other scenes that require high sound/heat insulation.

Rock wool sandwich panel (RW)

Features:Class A fire protection, high temperature resistance, good sound insulation and heat insulation, low strength.
Application: Cold chain cold storage, constant temperature workshop, energy-saving roof and other thermal insulation requirements.

Polyurethane sandwich panel (PU)

Features: B1 grade fireproof material, best thermal insulation performance, high strength.
Application: Suitable for scenes with high thermal insulation requirements, such as cold chain logistics cold storage, constant temperature workshop, energy-saving roof, etc.

Polystyrene sandwich panel (EPS)

Features: B2 grade fireproof material, poor fire resistance, medium thermal insulation/strength, low cost.
Application: Temporary buildings, warehouses, and other low fire protection requirements.

Classification by Metal Sheet

Color-coated steel roof sandwich panel

Substrate: Galvanized steel and aluminum-zinc steel.
Features: Excellent corrosion resistance, rich color (PE/SMP/PVDF coating on the surface to enhance weather resistance).
Application: Industrial plants, warehouses, gymnasiums and other large-scale building roofs; prefabricated buildings, such as container houses, movable panel houses.

Stainless steel roof sandwich panel

Substrate: 304, 316, 201 stainless steel, etc., stainless steel is used on both sides in extreme environments.
Features: Excellent corrosion resistance, dust and bacteria, wear and impact resistance (higher cost).
Application: Food factory, Pharmaceutical factories, operating rooms, laboratories and other highly hygienic/corrosion-resistant scenarios.

Aluminum alloy roof sandwich panel

Substrate: 3003, 3004, 5052, etc.
Features: lightweight, corrosion-resistant, easy to process, decorative and fire-resistant.
Application: coastal chemical factories, island buildings, high-end public/residential buildings.

Multiple advanced production lines, with an annual output of more than 600,000 tons, with a full range of material types and specifications.
With an advanced inspection center, we test the product’s element content, corrosion resistance, specifications, appearance, physical properties, etc.
We can provide MTC forms for metal sheets, produce strictly in accordance with customer requirements, and support third-party testing.
With a complete service process, we can provide feedback on production progress at any time after signing the contract, timely pre-sales quotations, and any after-sales questions can be solved.

As a manufacturer with 17 years of production experience and 14 years of export experience, Wanzhi Steel has multiple production lines and can supply roof sandwich panels of various materials and specifications. If you want to know more, please contact us.
