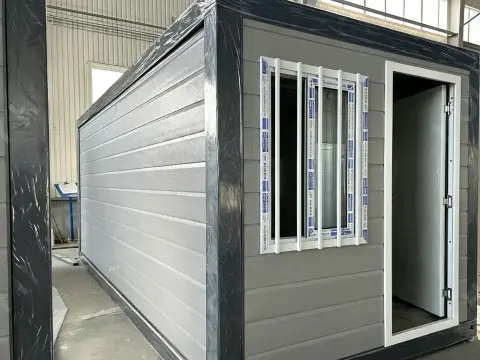

Detachable Container House

Specifications

Item	Details
Product Type	Detachable Container House
Standard External Dimensions	10ft / 20ft / 30ft / 40ft
Main Frame Material	Q235B hot-dipped galvanized steel, frame thickness 2.2-3.0mm
Wall/Roof Panel	50/75/100mm EPS sandwich panel (B1 class flame retardant) or rock wool sandwich panel (Class A fireproof)
Floor Load Capacity	Standard 2.0KN/㎡, customizable
Stacking Layers	1-4 layers
Wind Resistance	Grade 10-12
Seismic Resistance	Grade 8
Applicable Temperature	-30℃ to +60℃
Accessories	Security door, sliding window, pre-embedded wiring channel, socket and lighting, anti-slip flooring

Advantages

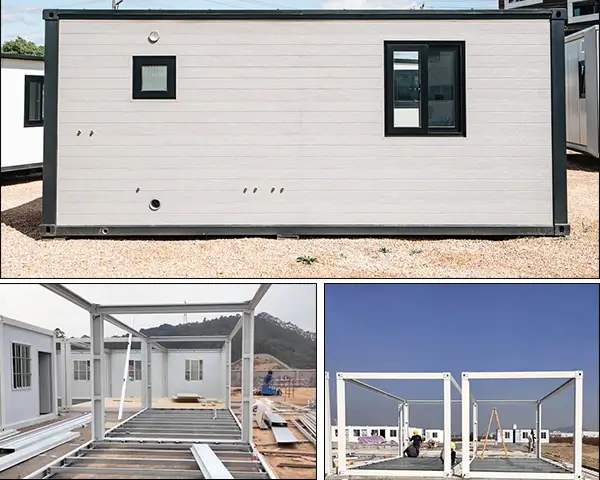

1. Highly detachable
Unlike welded prefabricated houses, all components can be fully disassembled as they were produced, then packed and transported separately.

2. Movable and reusable
The detachable feature makes transportation extremely convenient. No matter how many times you disassemble and reassemble, it maximizes savings on logistics costs and has no foundation requirements.

3. Strong and stable
As comfortable as a permanent house. You only need to bring in furniture and appliances, plug in for electricity, and it is ready to use. It shelters from rain and wind, whether in mountainous areas, severe cold, deserts, or coastal regions.

4. Low cost and flexible

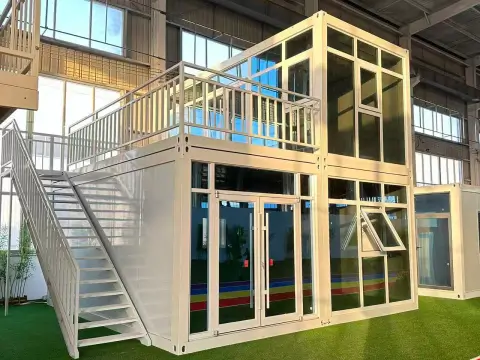

Can be stacked and spliced into large spaces. Saves labor and time compared to traditional construction. Customizable partitions, shapes, kitchens, bathrooms, etc.

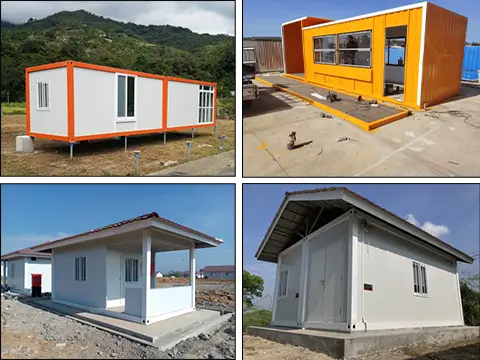

Applications

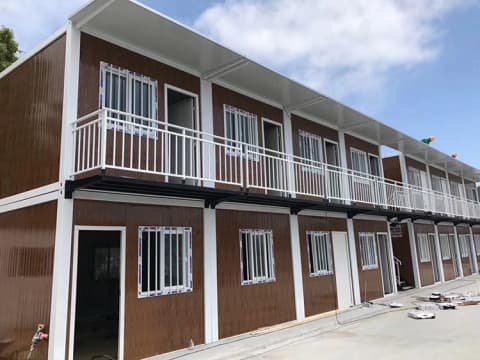

Temporary office or accommodation
As extension space for office buildings, employee canteens, project offices, performance temporary changing rooms, shower rooms.

Construction and relocation
As post-disaster housing for earthquakes, wars, tsunamis, etc., providing temporary transition for personnel.

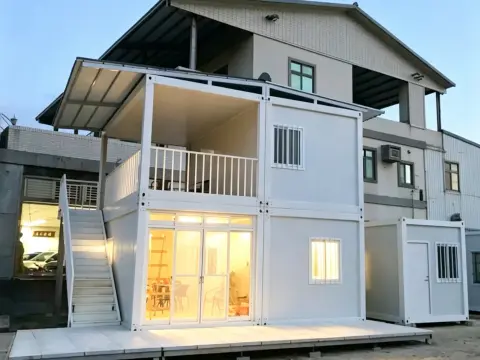

Tourism and commerce
As mobile coffee shops, mobile stores, temporary barbershops, rest stops, theme hotels.

Public facilities
Mountain schools, hospitals, libraries, municipal tool warehouses, farm cottages.

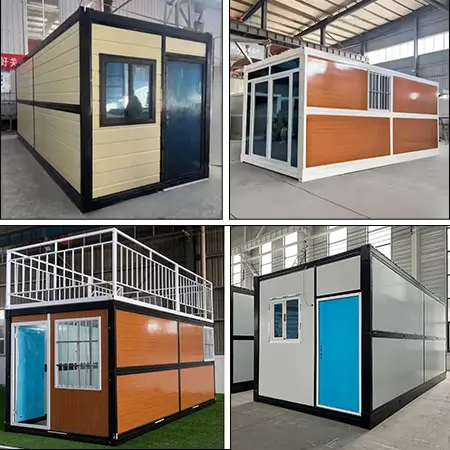

Detachable Container House vs. Foldable Container House

Comparison Item	Detachable	X-Type / Z-Type (Foldable)
Structure Method	Frame + panels separated	Pre-assembled as whole, unfolded on site
Assembly/Disassembly Method	Walls, roof, floor, frame all disassembled	One pull / one push
Shipping Condition	Frames stacked, panels bundled	Folded as a whole
Loading Quantity per 40HQ	6-8 units	12-14 units (Z-Type thinner)
On-site Assembly Time	2-3 hours (3-4 people)	5-10 minutes (2-3 people)
Dimensional Flexibility	High (any length, width, height can be customized)	Low (usually fixed modular dimensions)
Typical Use	Semi-permanent camp, relocatable office	Emergency relief, quick turnaround projects
Price	Medium	Slightly higher

Production Process

Step 1 – Frame fabrication
Q235B hot-dipped galvanized square tubes are drilled and welded to make detachable frames.

Step 2 – Panel production
Use color steel sheets with thick paint film, combined with insulation core materials to make sandwich walls, roof panels and partition panels, with edge waterproofing treatment.

Step 3 – Electrical and plumbing pre-embedding
Electrical and plumbing installation, including conduit layout, water pipe layout, socket and switch installation. Pre-embedded in advance.

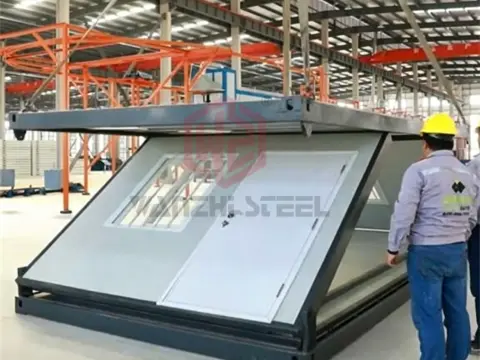

Step 4 – Factory pre-assembly inspection
Ensure bolts and holes align. Conduct lighting circuit testing, and check for defects in doors, windows, flooring, etc.

Step 5 – Disassembly and packing
Fully disassemble, stack steel frames, bundle wall panels, bundle doors and windows, and pack accessories into boxes.

Quality Inspection

Before leaving the factory, all assembled houses undergo strict quality inspection, including:

• Frame dimensions, paint film thickness, bolt hole diameter
• Thickness of metal sandwich panels and roof panels
• Waterproof performance
• Electrical safety of lighting, sockets, switches, etc.
• Seismic rating, wind resistance performance, sealing performance

FAQ

Q: What is the difference between a detachable container house and a folding house?
A: A detachable house is shipped with frame and panels separated, and assembled on site with bolts. A folding house is pre-assembled at the factory and directly unfolded or simply assembled on site.

Q: Is a foundation required?
A: No, only a simple concrete cushion or gravel base is needed. If you install on a slope, please contact us for customization.

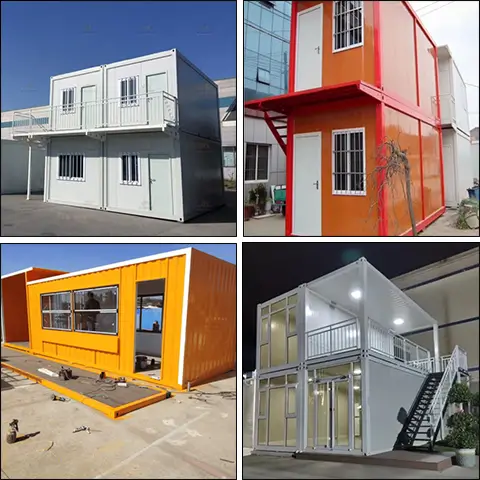

Q: Can I stack them into two layers?
A: Yes, you need to add connectors and reinforce the bottom layer structure.

Q: What insulation materials are available?
A: EPS (economical), rock wool (fireproof), polyurethane (best thermal performance). These are all core materials for walls and roofs.

Why Choose Wanzhi Steel?

1. Factory direct supply
We have our own factory with complete production lines for steel frames and sandwich panels. No middlemen, factory direct prices.

2. Strict quality control
Full internal quality inspection from raw materials to finished products. QC department re-inspects before shipment, ensuring product quality and timely delivery.

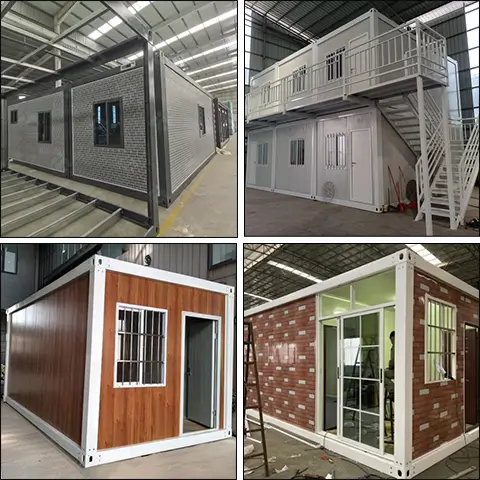

3. Strong customization capability
One-stop procurement. Accept OEM orders: custom size, color, layout, logo, and provide supporting products such as safety fences.

4. Fair price with rich export experience

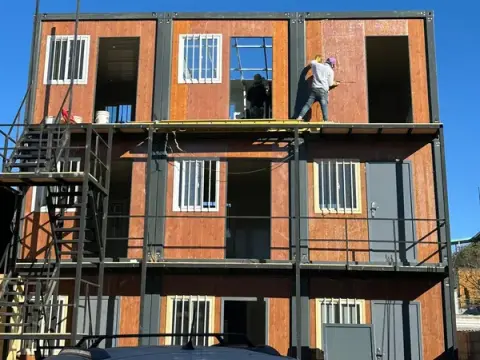

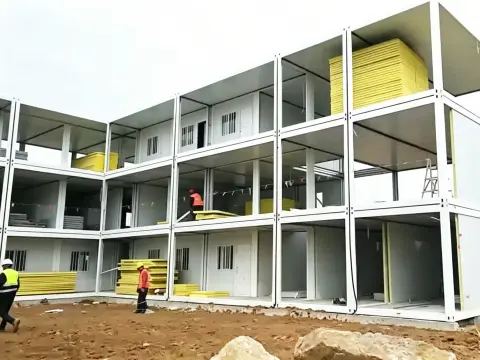

Monthly production capacity of 500+ units. Factory prices. Exported to Philippines, Papua New Guinea, Brazil, Argentina, Chile and other regions. Multilingual service team.

Wanzhi Steel is a Chinese Prefabricated container houses manufacturer with ISO9001 certifications. We specialize in producing 20ft/30ft/40ft Expandable Container Homes, 1 bedroom/2 bedroom/3 bedrooms container homes, Site Office Containers, Worker Dormitories, and Portable Toilets. With high-quality service, our products have been shipped to over 120 countries.
