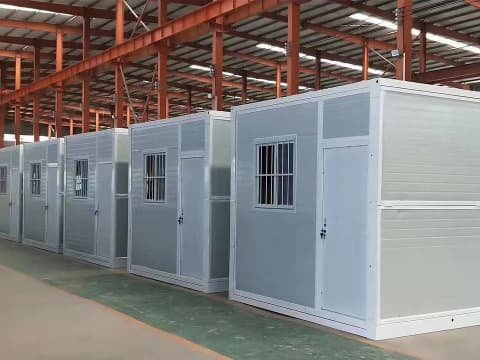

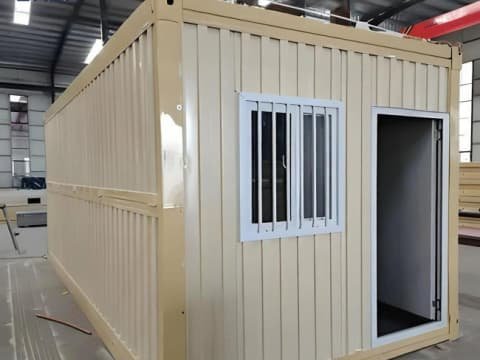

X-Type Folding Container House

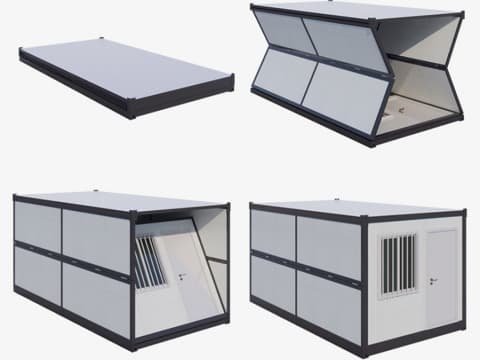

The X-Type folding container house, when viewed from the side, folds and unfolds like the letter “X”. It is a prefabricated housing module pre-installed with doors, windows, flooring, and lighting at the factory. It is commonly used for construction-site dormitories, temporary schools, and temporary housing. It offers extremely low transportation costs and can be reused multiple times. Its comfort level is comparable to concrete houses, and it can also serve as permanent housing.
Wanzhi Steel is a professional manufacturer and supplier of collapsible container houses. Our foldable container homes can be fully unfolded and secured in just 10 minutes. The product supports comprehensive customization from the inside out, including dimensions, layout, and appearance.
Specifications
| Item | X-Type Folding Container House |
|---|---|
| Product Type | Collapsible / Modular Prefabricated House |
| Structure | Q235 Hot-dipped galvanized square tube steel frame |
| Standard Sizes | 10ft / 20ft / 30ft / 40ft |
| Weight | 0.8t / 1.5t / 2.1t / 2.8t |
| Wall / Roof | Metal sandwich panel |
| Flooring | PVC vinyl flooring, wood flooring, etc. |
| Doors & Windows | Security door + Plastic-steel / Aluminum alloy windows |

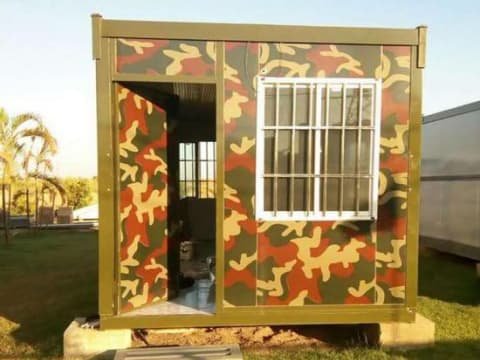

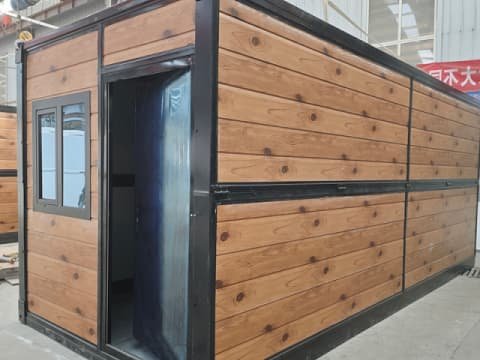

| Color | White / Gray / Wood grain / Camouflage, customizable |
| Packaging | Standard sea freight packing |
Advantages of X-Type Foldable Container Home
1. Highly Foldable
Easy to transport to the next project location, greatly reducing logistics costs. Can be reused dozens of times. We accept replacement of damaged parts.
2. Quick Installation
No crane required, no foundation needed, not affected by terrain. Especially suitable for emergency shelter. Factory pre-installation rate reaches 90%.
3. Flexible Arrangement

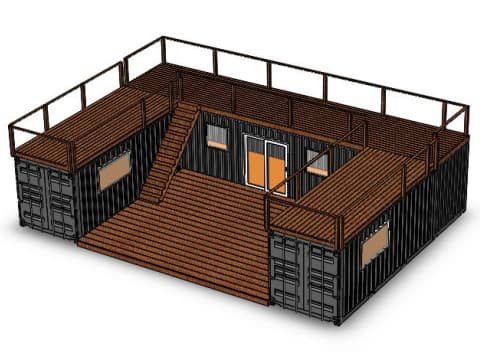

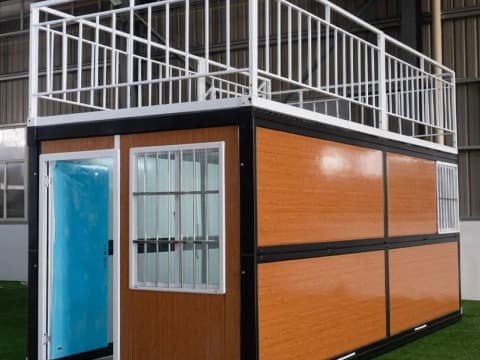

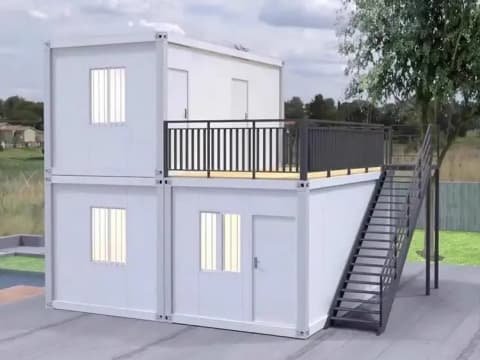

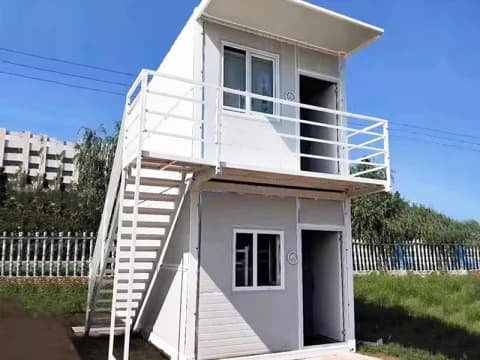

Can be arranged side by side horizontally, stacked vertically up to 3 layers, or arranged in L-shape or U-shape configurations to create personalized housing modules.
4. Sturdy and Durable
The steel frame ensures sufficient load-bearing capacity, wind resistance up to Level 8, and rainproof performance. Only an external power connection is needed on site. Whether in tropical or snowy regions, the insulation performs well, with a service life of up to 15 years.

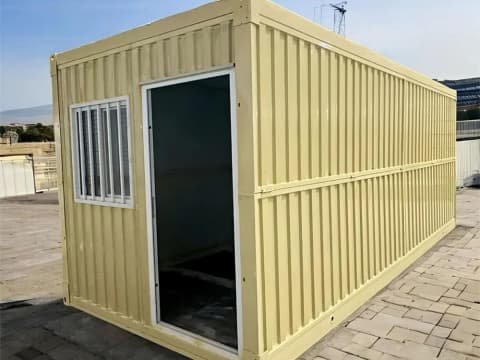

Applications of the X-Type fold-out shipping container
Engineering & Infrastructure

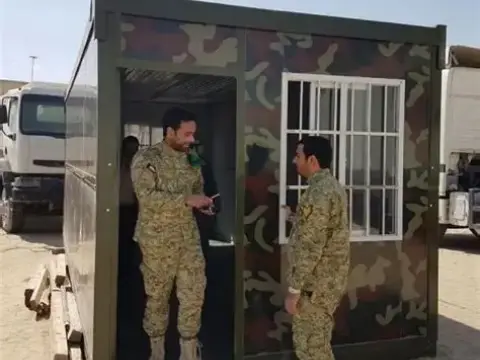

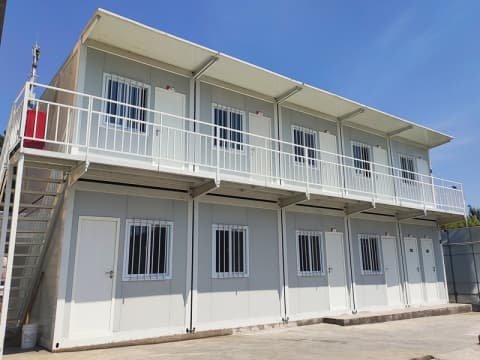

Construction site offices, single/double-layer worker dormitories, temporary shelters for mining and exploration projects, remote area hospitals, barracks, border outpost houses, township temporary schools, rural classrooms/kindergarten facilities.
Emergency & Public Service

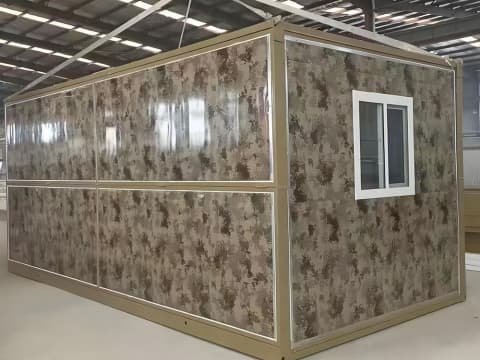

Post-disaster reconstruction housing for earthquakes, typhoons, mudslides, tsunamis, etc., temporary public service stations, emergency command centers.
Commercial & Leisure

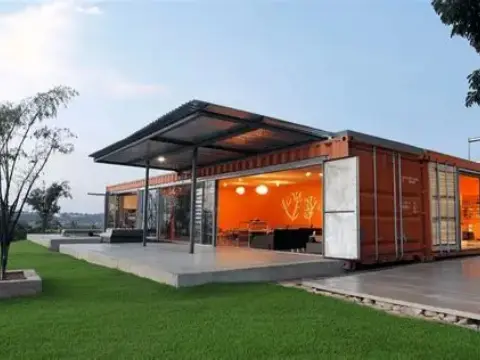

Park ticket booths, lakeside cabins, campsite guest rooms, coffee shops, rural village stores, courtyard offices, private backyard homes, bed & breakfasts/vacation homes.
Agriculture & Storage
Farm temporary dormitories, farm management houses, fruit and vegetable storage, and temporary grain and produce warehouses.
What Sizes are Available?
| Size | Unfolded Area | Unfolded Dimensions (L×W×H) | Folded Dimensions (L×W×H) |
|---|---|---|---|
| 10ft | 7.2 ㎡ | 3000 × 2400 × 2500 mm | 3000 × 2400 × 320 mm |

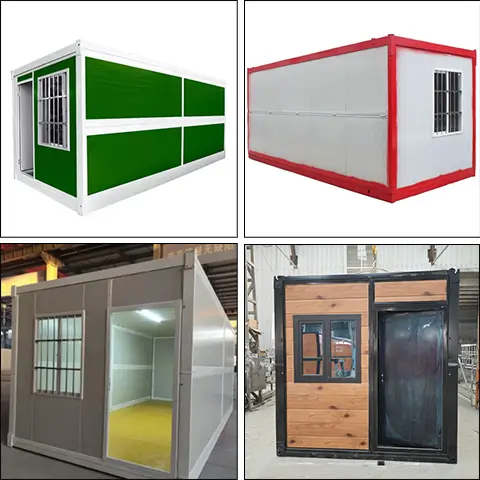

| 20ft | 14.4 ㎡ | 5800 × 2480 × 2500 mm | 5800 × 2480 × 320 mm |
| 30ft | 21.6 ㎡ | 8800 × 2480 × 2500 mm | 8800 × 2480 × 320 mm |
| 40ft | 28.8 ㎡ | 11800 × 2480 × 2500 mm | 11800 × 2480 × 320 mm |

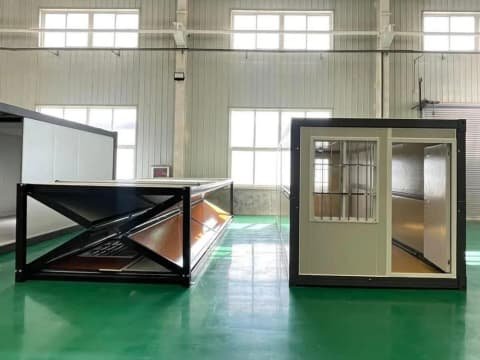

The folded height is 320mm, which is 12.8% of the original height (2500mm), or approximately 1/8 of the original size.
Production & Quality Control
We first weld galvanized steel strips into galvanized square tubes, then cut and weld the square tubes into the X-Type folding frame.
For critical components such as the folding supports and locking mechanisms, we ensure smooth opening and folding while maintaining strength that meets safety standards.

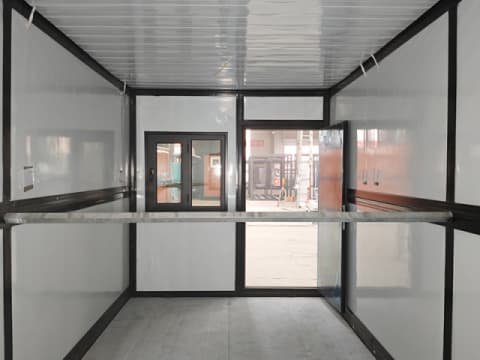

We then install the metal sandwich wall panels (available in white, wood grain, gray, camouflage, etc.), lay the electrical wiring, install the flooring, ceiling structure, and doors and windows.
Waterproof sealing is applied to all gaps. Finally, we conduct folding function testing to check whether folding and unfolding are smooth and safe, and whether any sticking or jamming occurs.
Factory Inspection
- Structural strength test: Checks wind resistance and seismic performance.
- Water spray test: Verifies waterproofing performance.
- Sealing inspection: Checks reserved water and electrical interfaces. Folding mechanism reliability test.
- Appearance inspection: Confirms no obvious scratches and a complete paint finish.
After passing inspection, the unit is wrapped in plastic film and arranged for factory dispatch and export.
Delivery Standards
- Packaging: Wrapped with waterproof film after folding
- Accessories: Standard configuration includes mounting bolts and sealing strips. Ready for installation upon arrival.
- Certification: CE, ISO, and other international certifications available upon request, meeting overseas customs clearance and project acceptance requirements.
Why Choose Wanzhi Steel?
1. Factory Direct Supply
Raw materials use high-zinc-layer galvanized steel to ensure basic anti-rust performance. Accessories and hardware meet export engineering standards.
2. Convenient Transportation
Our X-Type folding design doubles loading capacity, making it suitable for bulk purchasing and convenient for future disassembly and transport.

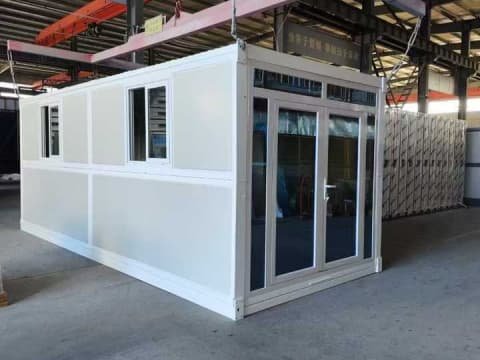

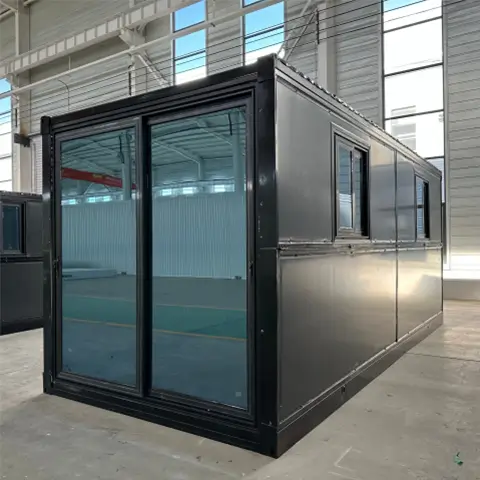

3. Comprehensive Customization

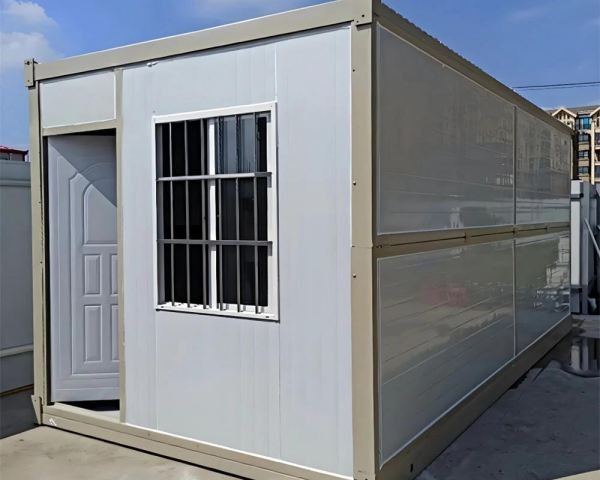

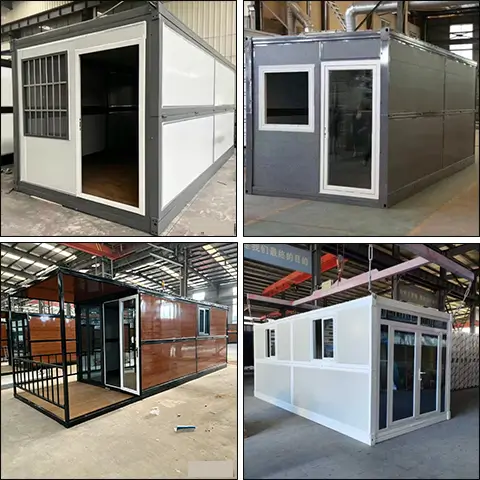

Width, interior partitions, number of sockets, and colors can all be customized. We also provide in-depth customization according to requirements, such as bathrooms, dining rooms, and other modules.
4. Global Supply Capability
We have a complete production and logistics system, support batch deliveries, and are familiar with international standards such as CE and ASTM. We have extensive export experience.
Wanzhi Steel is a Chinese prefabricated housing manufacturer with ISO9001 and CE international certifications. We specialize in producing Z-type folding houses, X-type folding houses, expandable houses, and flat pack container houses. With high-quality service, our products have been shipped to over 120 countries.
